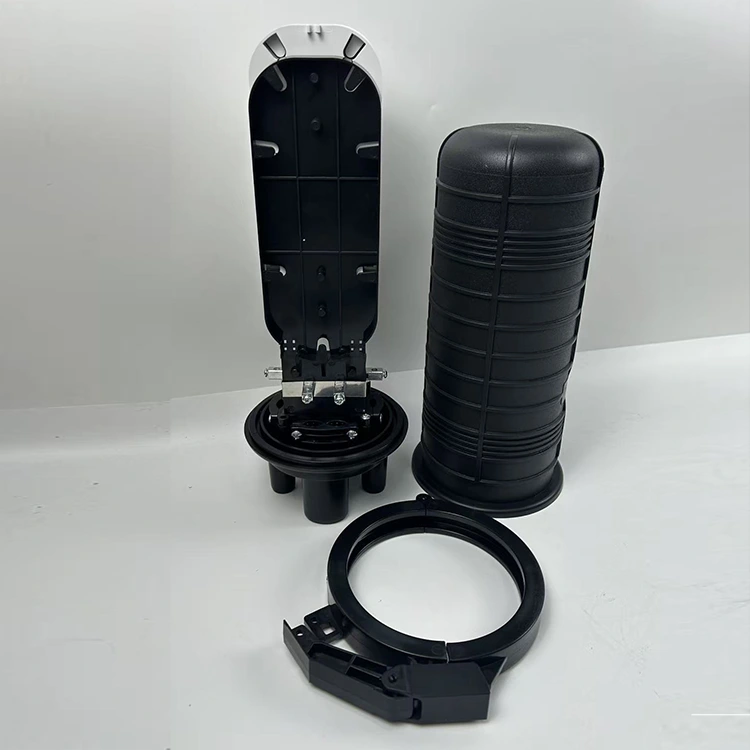

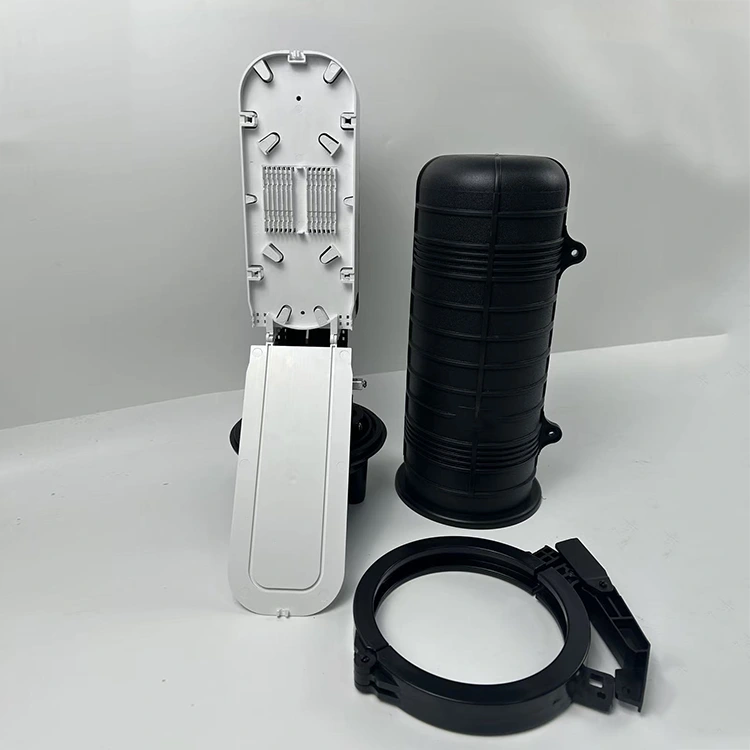

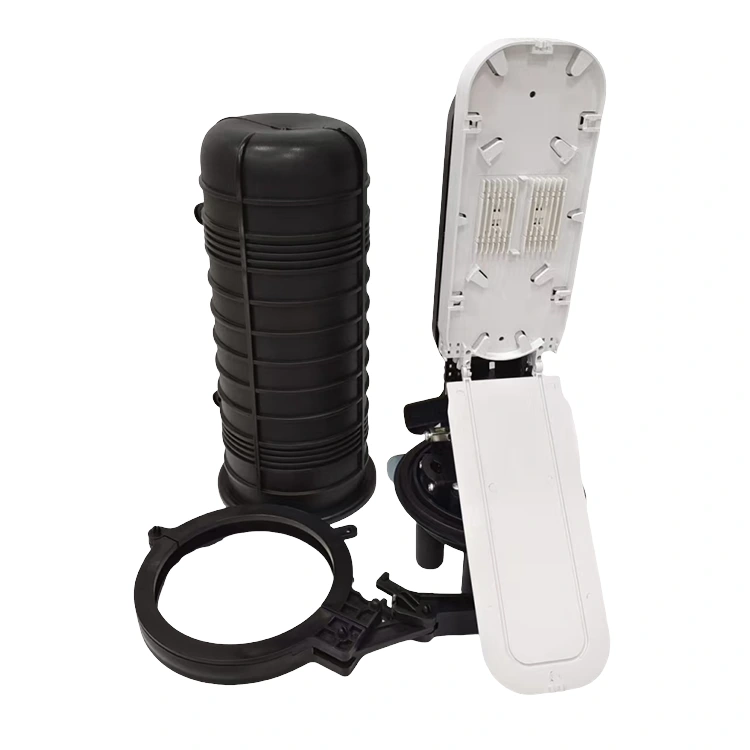

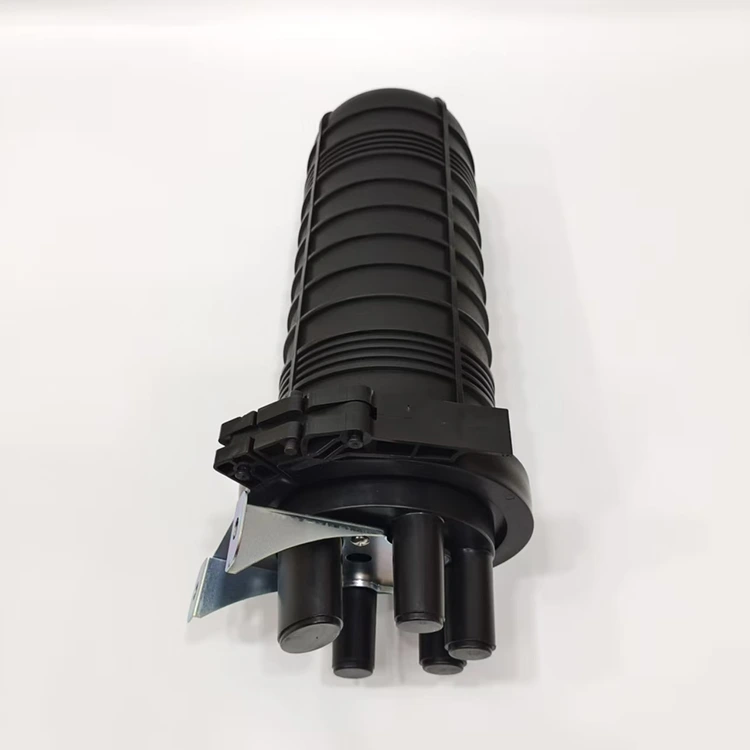

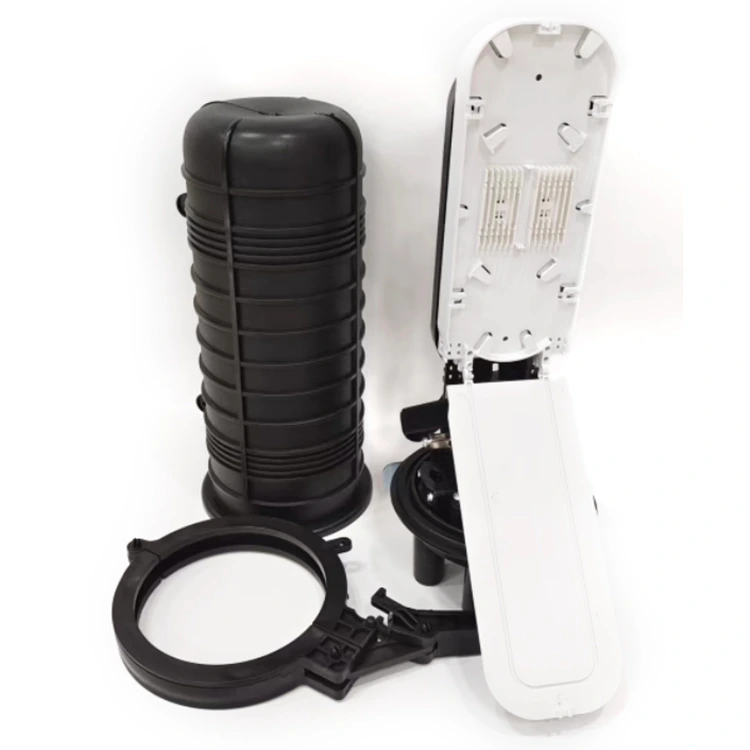

As a professional 96Core Fiber Optic Dome Splice Closure manufacturer in China, Ningbo Yuanyi Communication Technology Co., Ltd. combines robust engineering with user-friendly design. Each splice tray accommodates 24 cores, and the closure can house up to 6 trays, achieving a maximum capacity of 144 cores when fully configured. The closure uses a heat-shrink sealing mechanism, ensuring long-term waterproof protection (IP68 rated).
Whether you are a distributor looking for a customized 96Core Fiber Optic Dome Splice Closure with laser-printed LOGO or a contractor in need of a reliable supplier from China, we offer first-hand factory pricing and end-to-end support.
|
Parameter |
Specification |
|
Model |
YY-MS09 |
|
Product Name (Global) |
FOSC 96Core Fiber Optic Dome Splice Closure |
|
Also Known As |
OTB (Southeast Asia), MUFA (Latin America) |
|
Material |
Engineering Plastic (PP/PC) |
|
Sealing Type |
Heat-shrinkable |
|
Max Fiber Capacity |
144 cores (6 trays × 24 cores) |
|
Supported Core Range |
24–144 cores |
|
Splice Tray Capacity |
24 cores per tray |
|
Number of Trays (Max) |
6 pcs |
|

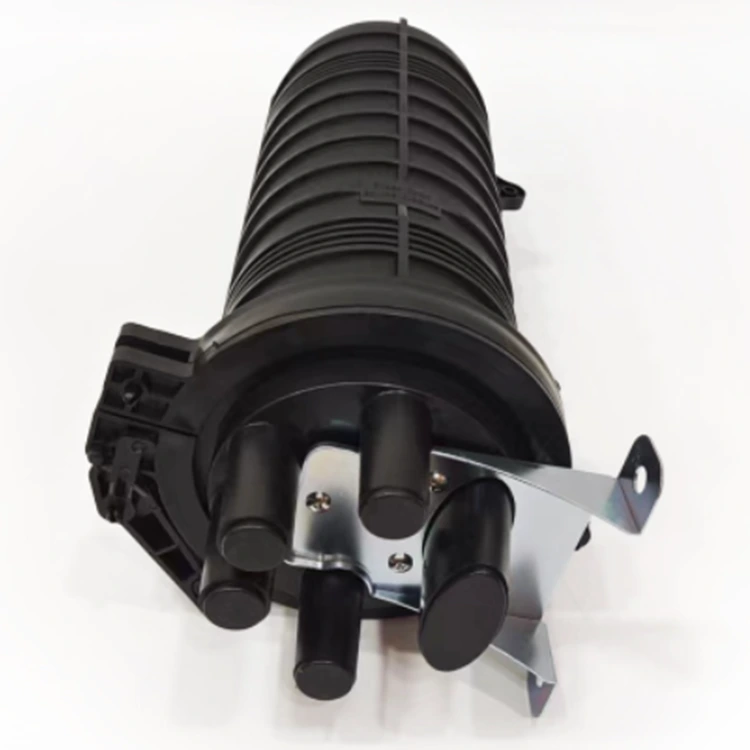

Cable Ports |
1 inlet, 3 outlets |
|
Protection Grade |
IP68 |
|
Ambient Temperature |
-40°C ~ +60°C |
|
Air Pressure Range |
70 ~ 106 KPa |
|
Dimensions (H × D) |
380 mm × 150 mm (approx.) |
|
Color Options |
Black (custom LOGO available) |
High-Density Design: Supports 24–144 cores with modular 24-core splice trays (max. 6 trays)；
Heat-Shrink Sealing: Ensures IP68-rated waterproof and dustproof performance；
Durable Material: Made from high-quality engineering plastics, resistant to UV, acid, alkali, and aging；
Flexible Installation: Suitable for aerial, pole, wall, underground, and duct mounting；
Tool-Free Re-entry: Easy to reopen for maintenance without special tools；
Integrated Air Valve: Allows sealing integrity testing；
Customization Options: Available in black finish with laser-printed LOGO；
Proven Reliability: Withstands extreme temperatures (-40°C to +60°C) and harsh outdoor conditions.
The MUFA 96Core Fiber Optic Dome Splice Closure is engineered for fast and reliable field deployment. Follow these guidelines for optimal performance:
Cable Preparation: Strip and clean cables before inserting into the closure ports.
Tray Configuration: Each tray holds up to 24 splices. Stack up to 6 trays for 144-core configurations.
Sealing Process: After splicing, use the heat-shrink method to seal all cable entry points. Ensure uniform heating for a watertight seal.

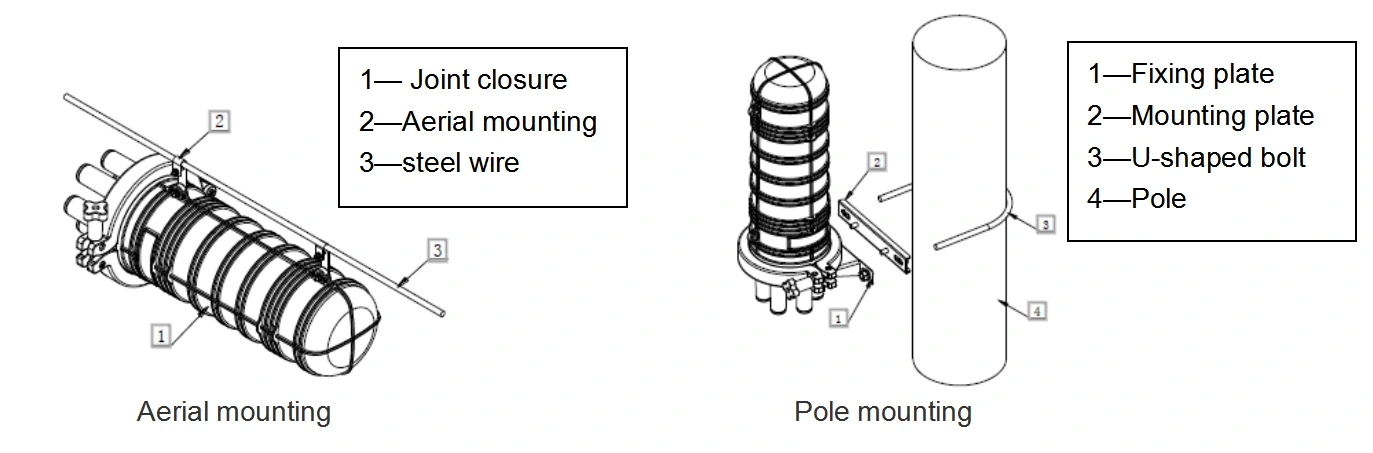

Mounting Options: Use the included accessories for aerial suspension or pole mounting. For underground or duct installations, secure the closure vertically or horizontally as needed.
Air Valve Testing: After sealing, pressurize the closure and check for leaks using the air valve.
|

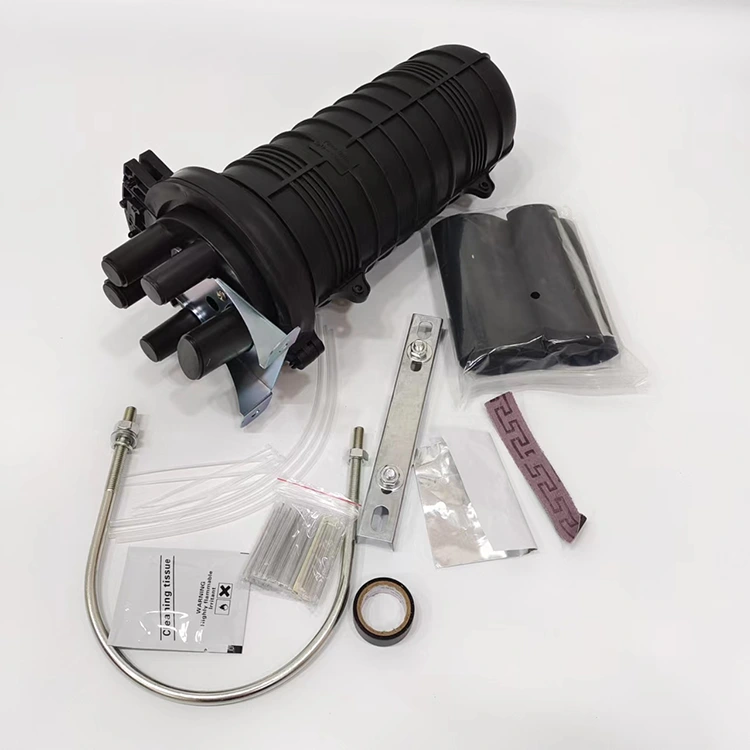

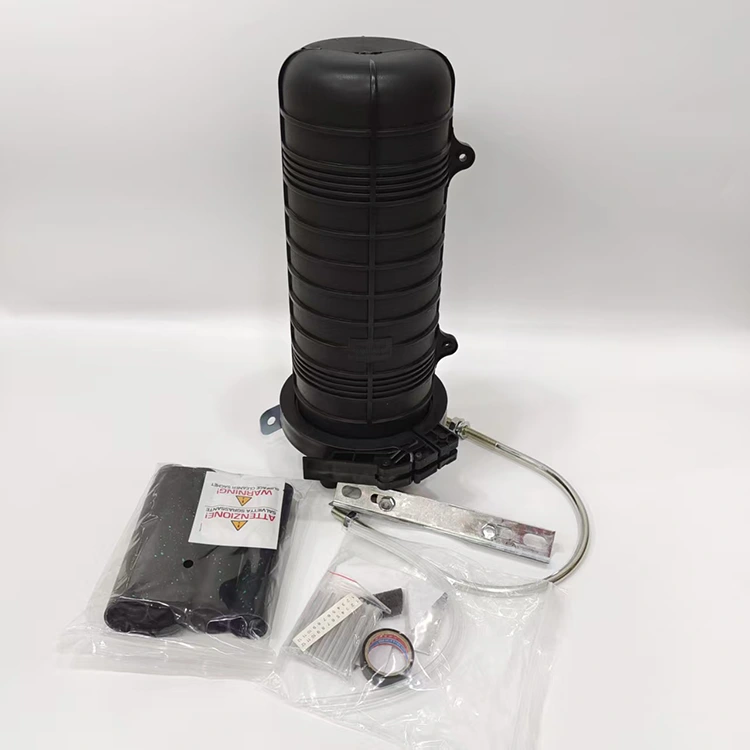

Tag paper |
1pcs |
|
Sand paper |
1pcs |
|
Silver paper |
1pcs |
|
Insulating tape |
1pcs |
|
Metal hanger |
2pcs(Optional Accessories ) |
|
Grounding wire |
1pcs(Optional Accessories ) |
|
Cable tie |
3mm*10mm 12pcs |
|
Fiber protective tube |
3pcs |
|
Heat-shrink sleeve |
1.0mm*3mm*60mm 144pcs （Configurable according to core） |
|
Pole accessories |
1 pcs (Optional Accessories ) |
As a dedicated FOSC Fiber Optic Dome Closure Factory, Yuanyi stands behind every product with strict quality control and industry-standard certifications. Whether you need OTB Fiber Optic Dome Splice Closure in Stock for immediate deployment in Southeast Asia, or a Customized MUFA Fiber Optic Dome Closure for Latin American projects, we ensure:
First-hand cost pricing – no middlemen
Customization support – LOGO, packaging, tray configuration
1-year warranty and return/exchange policy for quality issues
Transparent communication and on-time delivery
Bulk pricing available – request our Price List for large projects
From FOSC to OTB to MUFA, Yuanyi guarantees worry-free procurement and long-term cooperation.
