Ningbo Yuanyi Communication Technology Co., Ltd. is a professional Waterproof Pre-connected Fiber Distribution Box manufacturer in China. Our waterproof pre-connected fiber distribution box is the core element in a pre-connectorized ODN (Optical Distribution Network) , enabling plug-and-play FTTH deployment from the main cable to the end user's ONT, phone, TV, and PC — eliminating the need for field splicing, polishing, or adhesive.

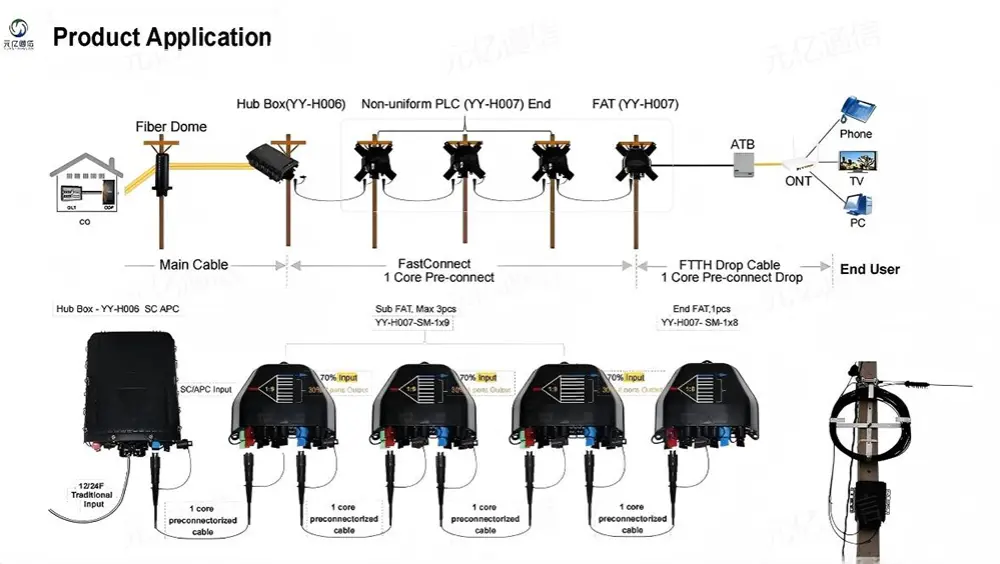

The main cable connects to a HubBox (YY-H006 SC/APC) , which distributes signals via pre-connectorized drop cables. Using non-uniform PLC splitters (e.g., YY-H007, 1×9 or 1×8 with 70/30 split ratio):
(1)70% of the signal continues to the next FAT (Fiber Access Terminal).
(2)30% of the signal drops to the end user.
The system supports cascaded Sub FATs (maximum 3 units) and an End FAT. All connections are factory-terminated using SC/APC connectors — no on-site splicing required, significantly reducing installation time and labor cost.
1. Waterproof & Environmental Protection Rated IP67 / IP68 — fully protected against dust and temporary or continuous immersion in water. UV-resistant and corrosion-resistant housing ensures 20+ years of outdoor service life.
2. International Standards Compliance Designed and tested according to ITU-T L.50, L.91, GR-3120, and other international telecom standards.
3. Material Made of high-quality PP, ABS, or PC — no metal parts. Lightweight, impact-resistant, and suitable for pole, wall, or aerial mounting.
4. Factory Pre-terminated SC/APC Connectors
Insertion loss: ≤0.3dB
Return loss: ≥55dB
Factory tested and certified for reliable performance.
5. Splitter Support Compatible with both uniform and non-uniform (unequal ratio) PLC splitters, including:
1×4, 1×8, 1×16, 1×32
Custom split ratios such as 70/30, 60/40, 90/10,80/20
As a factory, we provide a full system, including:
(1)1 core pre-connected drop cables (SC/APC to SC/APC, various lengths)
(2)12 core / 24-core feeder cables (pre-connectorized)
(3)Optional unequal ratio splitters for cascaded network architectures
(4)Matching HubBox, Sub FAT, and End FAT
No field splicing — reduces installation time by up to 70%.
No special tools or training required — lowers labor cost and error rate
Factory-tested connectors — guarantees system performance from day one.
Plug-and-play design — ideal for large-scale FTTH rollouts and rural broadband projects.
Rapid deployment for time-sensitive projects.
Cost-effective due to factory direct supply and minimized on-site labor.
End-to-end solution from drop cables to distribution boxes to splitters.
Technical support for network design, splitter ratio calculation, and cascading architecture.
