10 Core Waterproof Fiber Optic Distribution Box

As a professional Fiber distribution box manufactuer in China, Yuanyi would like to provide you high quality 10 core waterproof fiber optic distribution box, which Provides a sealed, organized environment for housing and managing up to 10 core connections with integrated splitting capability.

Applications:

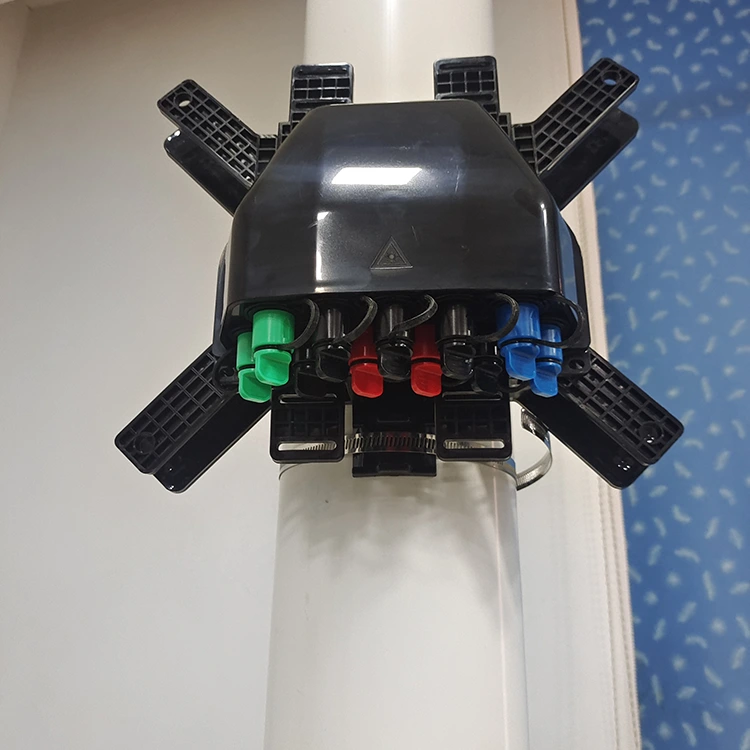

1. Deployment: Indoor and Outdoor Wall-Mount or Pole-Mount Installation.

2.Network Points: FTTH (Fiber to the Home), FTTB (Fiber to the Building), last-drop access, and fiber splicing points.

Key Features & Benefits

This high quality 10 Core Waterproof Fiber Optic Distribution Box is designed to simplify procurement, installation, and long-term network maintenance, addressing core buyer concerns for durability, flexibility, and total cost of ownership.

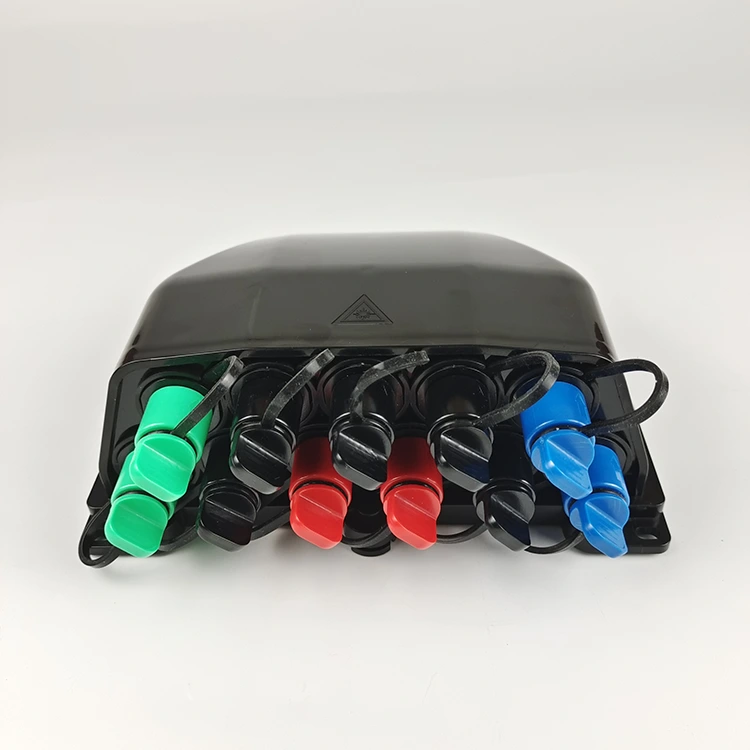

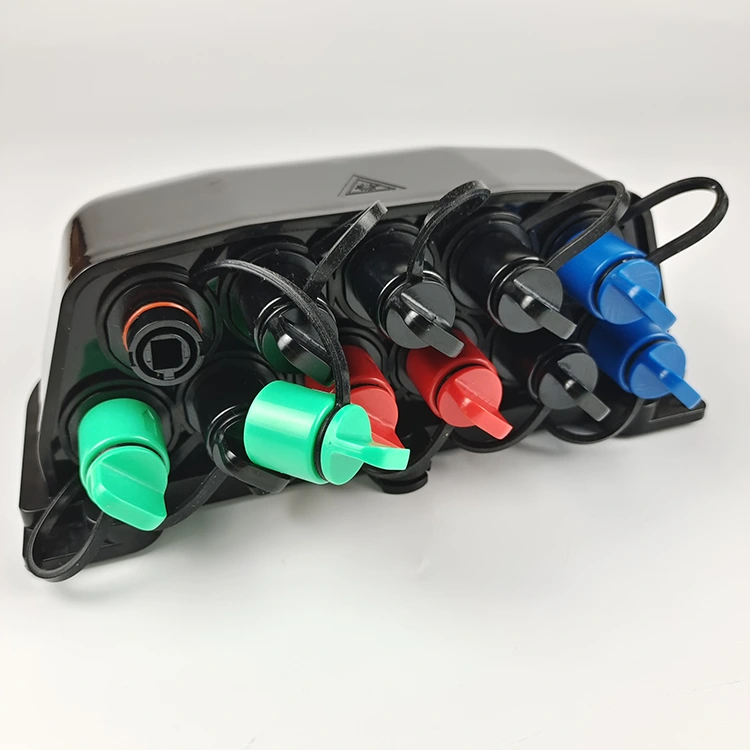

✅ Future-Proof, High-Density Capacity: Pre-equipped with 11 SC/APC waterproof adapters, supporting up to a 10-core termination layout with one spare port for testing or expansion. This ready-to-use configuration saves installation time and inventory complexity.

✅ Integrated Splitting Flexibility: Offers versatile passive optical network (PON) deployment options. Can accommodate:

1x Mini 1x8 PLC Splitter, or 2x Mini 1x4 PLC Splitters, or 1x 1x9 FBT Coupler.

Provides durable 10 Core Waterproof Fiber Optic Distribution Box buyers with a single SKU for multiple splitting scenarios.

✅ All-Weather Protection: Constructed from high-grade, UV-resistant ABS engineering plastic and featuring a reliable sealing design rated at IP68. This ensures complete protection against dust, moisture, and extreme temperatures (-40°C to +60°C), guaranteeing stable performance in harsh outdoor environments and reducing failure rates.

✅ Engineered for Installation & Maintenance Ease:

Compact, wall/pole-mountable design minimizes space requirements.

Mandatory >30mm bend radius control on all fiber paths protects against signal loss and fiber damage.

Integrated strain relief and cable management features, including a dedicated storage frame for excess fiber, ensure a clean, organized, and serviceable layout for easier future maintenance or reconfiguration.

Detailed Technical Specifications

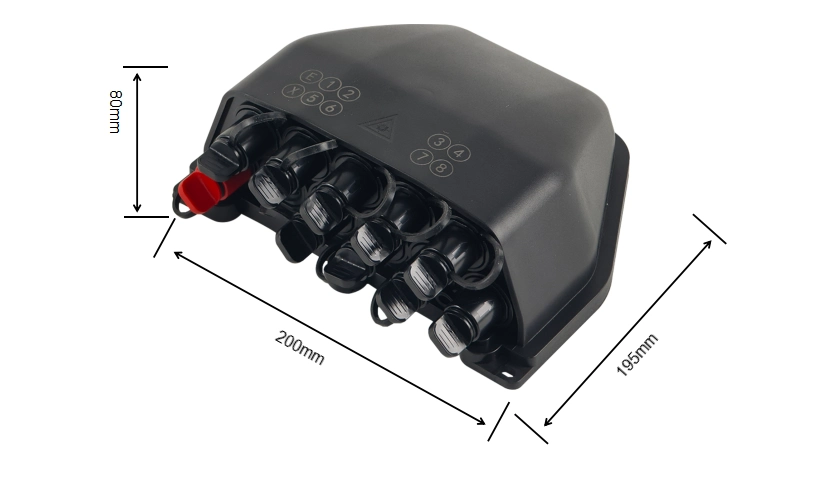

Overall Dimension:

Fashion 10 Core Waterproof Fiber Optic Distribution Box with storage frame. The fiber optic cable organizer's function: During renovation, it can better organize some fiber optic cables, making subsequent maintenance more convenient and aesthetically pleasing.

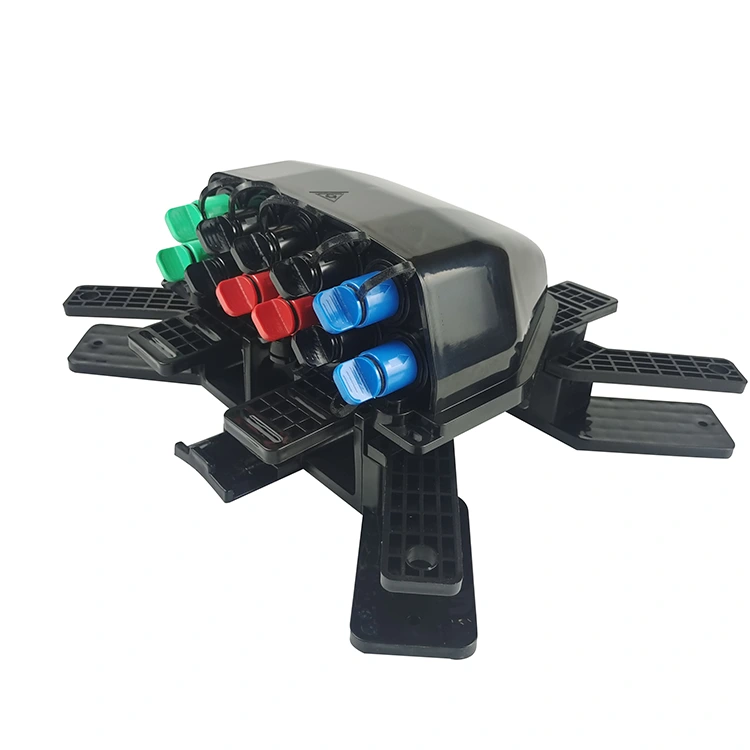

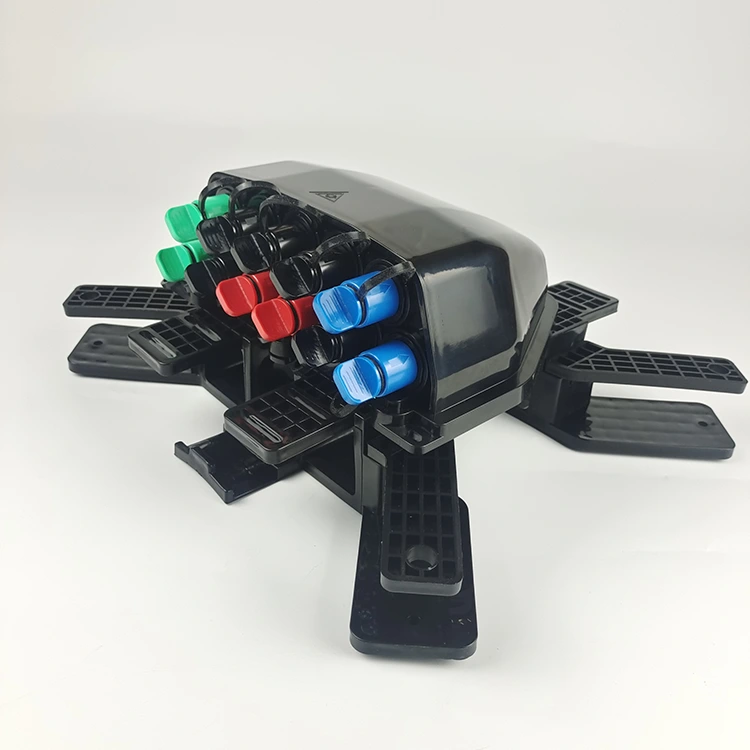

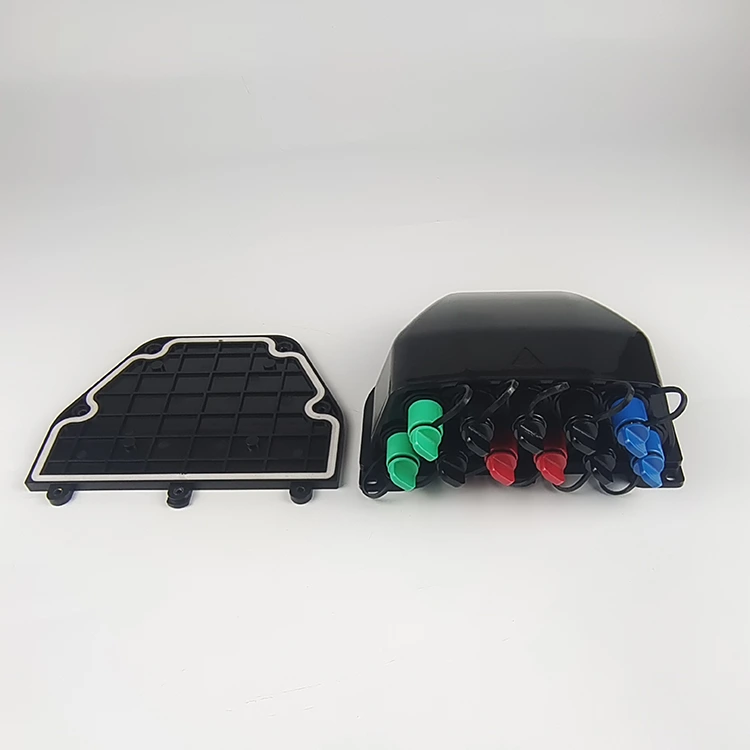

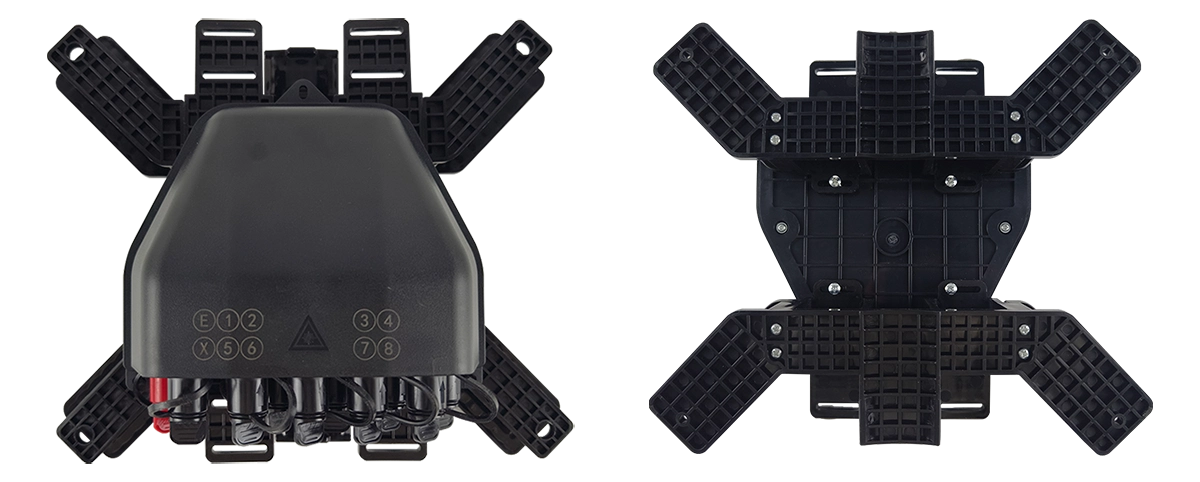

Product display:
