Ningbo Yuanyi Communication Equipment Co., Ltd. as a professional IP68 Waterproof Wall Mount Fiber Distribution Box manufacturer in China, focuses on the core design principles of integration, protection, and simplification. This equipment unifies all critical fiber optic management functions, eliminating the need for multiple components, shortening installation time, and ensuring long-term network integrity.
Pre-Termination Ready: The high quality IP68 Waterproof Wall Mount Fiber Distribution Box is designed for use with factory-pre-terminated cable assemblies. This "plug-and-play" design eliminates time-consuming field splicing, slashing installation time and labor costs by up to 60%.

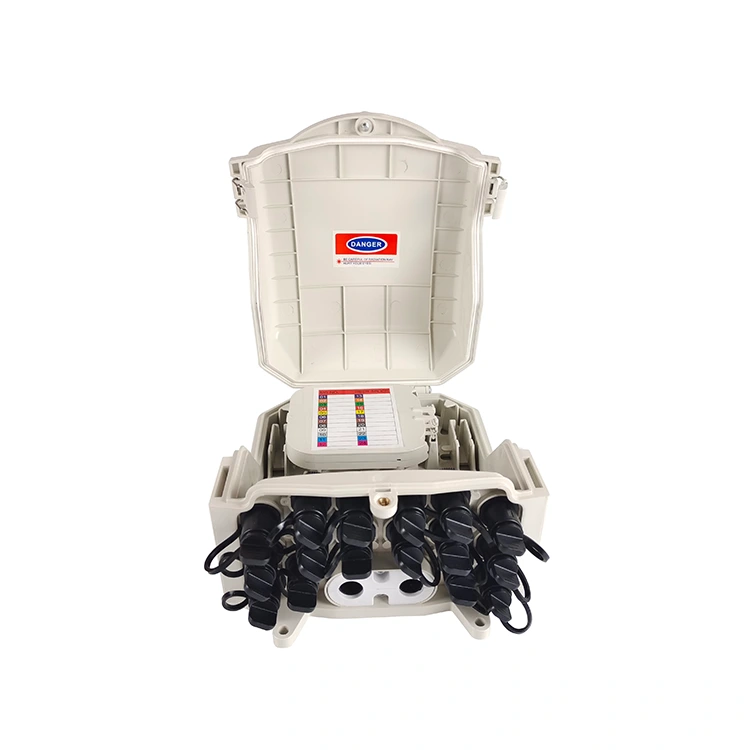

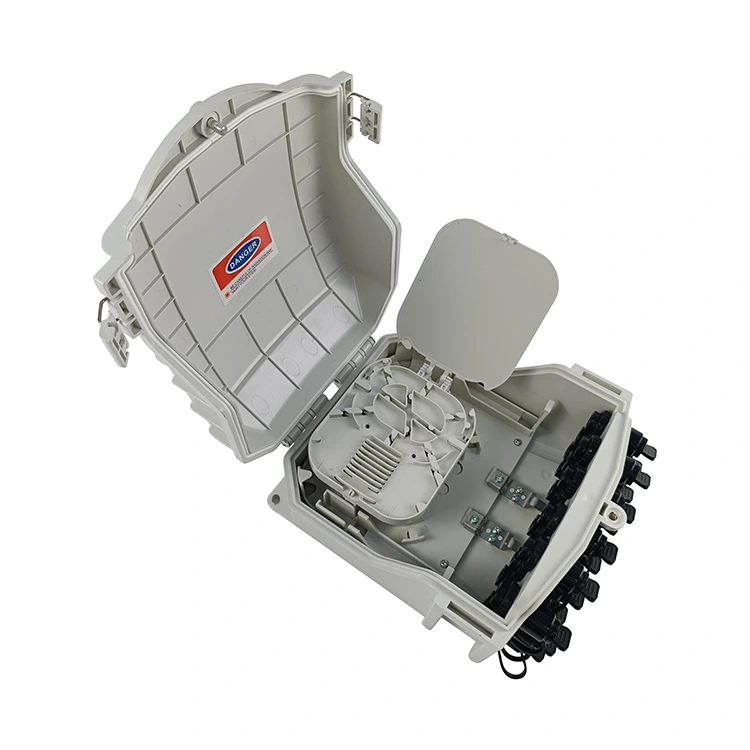

Flip-Up Distribution Panel: The unique flip-up design provides full, tool-less access to internal components. This allows for effortless cable routing, splicing, and future maintenance without disrupting live ports.
Structured Internal Routing: Dedicated, independent paths for feeders, drop wires, and patch cords in the IP68 Waterproof Wall Mount Fiber Distribution Box prevent fiber tangling and minimize bend radius violations, ensuring optimal signal performance and simplifying troubleshooting.
Engineered for Harsh Environments: Constructed from high-grade, anti-aging ABS material, this distribution box offers superior resistance to UV radiation, moisture, and corrosion.
Robust Sealing Standard: Features a fully sealed structure with high-grade silicone gaskets, achieving a IP68 protection rating (Note: Original spec IP65; confirm upgrade with engineering). This guarantees complete protection against dust ingress and prolonged water immersion, ensuring reliability in outdoor wall or pole-mounted applications.

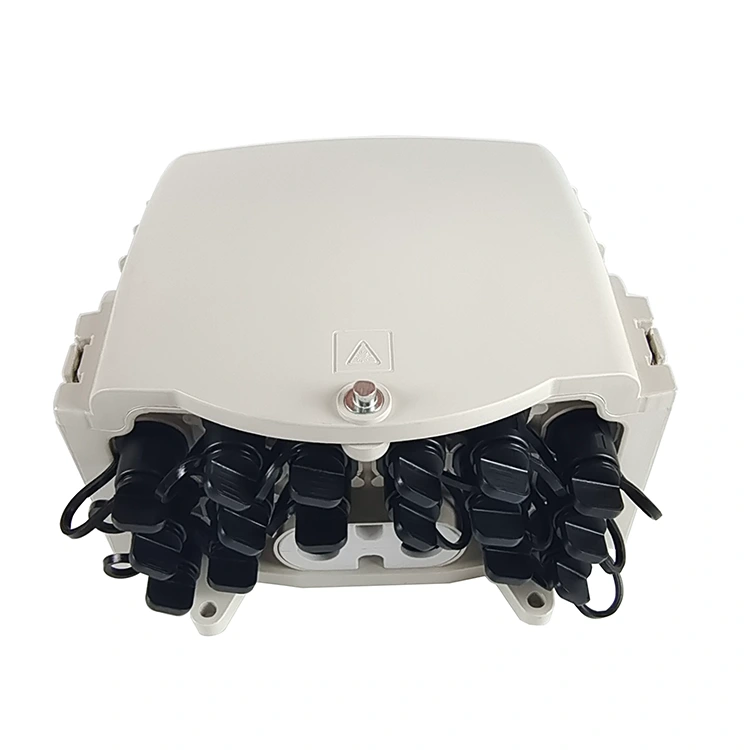

Optimized for 16 Subscribers: Equipped with 16 SC/APC or SC/UPC waterproof adapters (2 Inlets, 16 Outlets), providing a clean, organized, and scalable termination point.
Integrated Splitting & Storage: Ample space accommodates miniature PLCs or FBT splitters, as well as dedicated storage areas for splicing and excess fiber, maintaining an organized layout and easy-maintainable IP68 Waterproof Wall Mount Fiber Distribution Box.
|
Parameter Category |
Specification |
|
Model |
YY-H003 |
|
Product Designation |
16 Core IP68 Wall Mount Fiber Distribution Box |
|
Port Capacity |
16x SC Waterproof Adapters (APC/UPC Optional) |
|
Configuration |
2 Inlets, 16 Outlets |
|
Splitting Compatibility |
Supports 1x16, 2x8, or other micro PLC/FBT splitters |
|
Housing Material |
High-Impact, UV-Resistant ABS |
|
Ingress Protection |
IP68 (Dust-tight & Submersible) |
|
Operating Temperature |
-25℃ to +45℃ (Extended range available upon request) |
|
Relative Humidity |
≤ 85% at +30℃ |
|
Dimensions (LxWxH) |
260 x 220 x 125 mm |
|
Installation Method |
Wall Mount or Pole Mount |
|
Optical Performance |
Return Loss: APC ≥60dB, UPC ≥50dB |
|
Connector Durability |
≥ 1000 mating cycles |
This versatile 16 Core IP68 Wall Mount Fiber Distribution Box is the cornerstone for various FTTx architectures:
FTTH / MDU Deployments: Perfect for terminating feeder cables and distributing service to multiple dwelling units (apartments, hotels) from a single, compact wall-mounted unit.

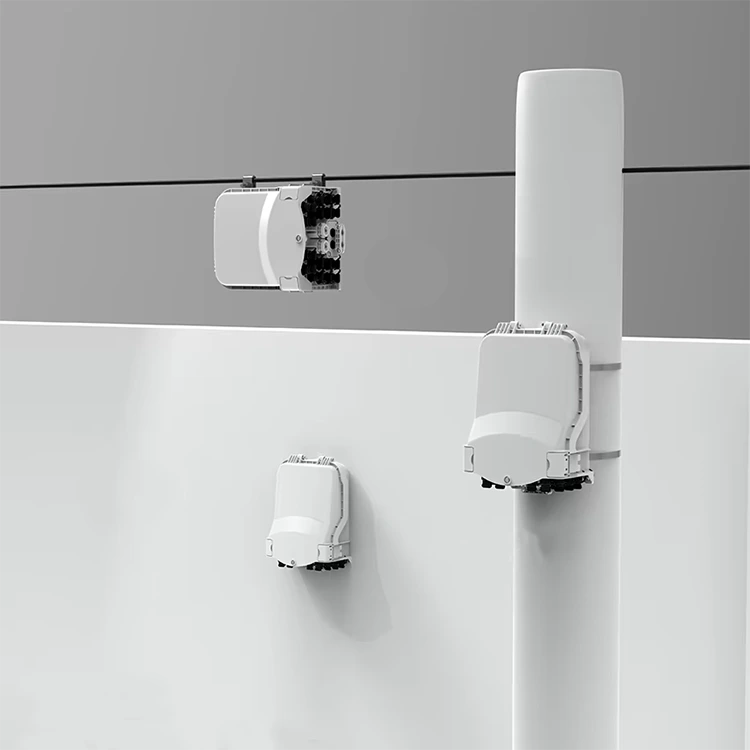

Last-Mile Access Points: Serves as a robust outdoor distribution node on telephone poles or building exteriors, connecting the backbone to customer drop cables.
Enterprise & Campus Networks: Provides a protected and managed fiber breakout point for office buildings, schools, and industrial parks.
4G/5G Small Cell Backhaul: A reliable, sealed enclosure for fiber connectivity at wireless network nodes.It is also the newest 16 Core IP68 Wall Mount Fiber Distribution Box, indispensable in FTTH ODN fiber distribution product projects.
Why It Works: Its IP68 rating and flexible mounting make it suitable for challenging locations, while its high density and organizational features are critical for neat, maintainable deployments in space-constrained areas.
When you specify the YY-H003, you are choosing more than just a product; you are partnering with a vertically integrated manufacturing leader.Ningbo Yuanyi IP68 Waterproof Wall Mount Fiber Distribution Box Factory
|
Aspect |
Ningbo Yuanyi Factory (Our Advantage) |
Typical Competitor |
|
Protection Level |
Engineered for IP68 reliability with double-sealed gaskets and rigorous pressure testing. |
Often standard IP65, with potential variability in sealing consistency. |
|
Manufacturing Control |
Vertical integration: In-house mold design, plastic injection, assembly, and testing. Ensures strict quality control from raw material to finished product. |
Often relies on outsourced components, leading to potential quality inconsistencies and longer lead times for custom parts. |
|
Customization Ability |
High flexibility: Quick turnaround on color, logo, port configuration (adapter type), and slight dimensional adjustments to meet specific project RFPs. |
Limited standard options; custom requests often involve high MOQs and long delays. |
|
Quality & Consistency |
ISO 9001 certified processes. Each distribution box undergoes functional checks for seal integrity, hinge operation, and adapter alignment. |
Quality may focus on sample approval, with less rigorous batch-by-batch in-line inspection. |
|
Technical Support |
Direct factory engineering support for complex deployment schematics and installation guidance. |
Support often handled by distributors or sales agents with limited technical depth. |
|
Value Proposition |
Total Cost of Ownership (TCO) leader: Higher initial reliability reduces field failure rates, maintenance visits, and operational expenses over the product's lifespan. |
May compete on initial unit price, but potential hidden costs in maintenance and shorter service life. |
Our Commitment: We don't just sell boxes; we provide certified, reliable, and adaptable fiber management solutions backed by direct factory expertise. Our control over the entire process allows us to guarantee the performance of every IP68 Waterproof Wall Mount Fiber Distribution Box that carries the YY-H003 model number.
Standard Model: YY-H003-16C-IP68
Standard Colors: White, Black, Gray
Customization: Logo printing, specific adapter types (SC, LC,etc.), and kit packaging (with splitters, pigtails) are available. Contact our sales team for project-specific solutions.
