In FTTH ODN (Fiber to the Home Optical Distribution Network) projects, using Yuanyi factory’s high quality16 core waterproof fiber optic distribution box offers significant advantages over traditional fusion splicing methods. These boxes optimize construction efficiency and deployment speed, increasing profitability. Their stable and reliable quality makes them the preferred choice for most FTTH projects aiming for 5G, and they are currently the most fashion 16 core waterproof fiber optic distribution box in South America.
Typical application scenarios for 16 core waterproof fiber optic distribution box include: rapid outdoor coverage in residential areas and large-scale broadband deployments in rural areas; high reliability requirements such as railway lines and video surveillance networks; and maintenance-difficult areas such as high-altitude poles and basements where fusion splicing is inconvenient.
Yuanyi has consistently been 16 core waterproof fiber optic distribution box supplier, providing products for FTTH ODN projects both domestically and internationally.

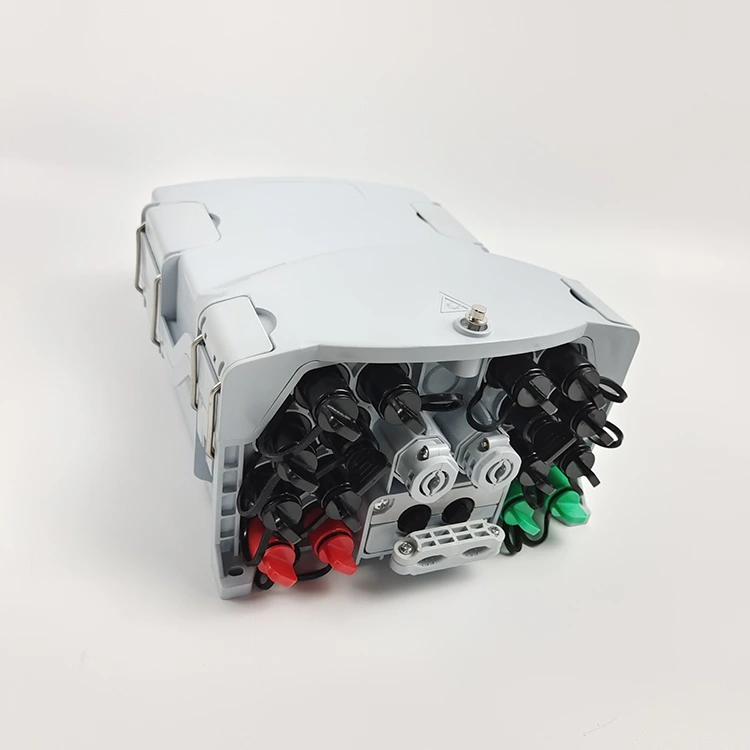

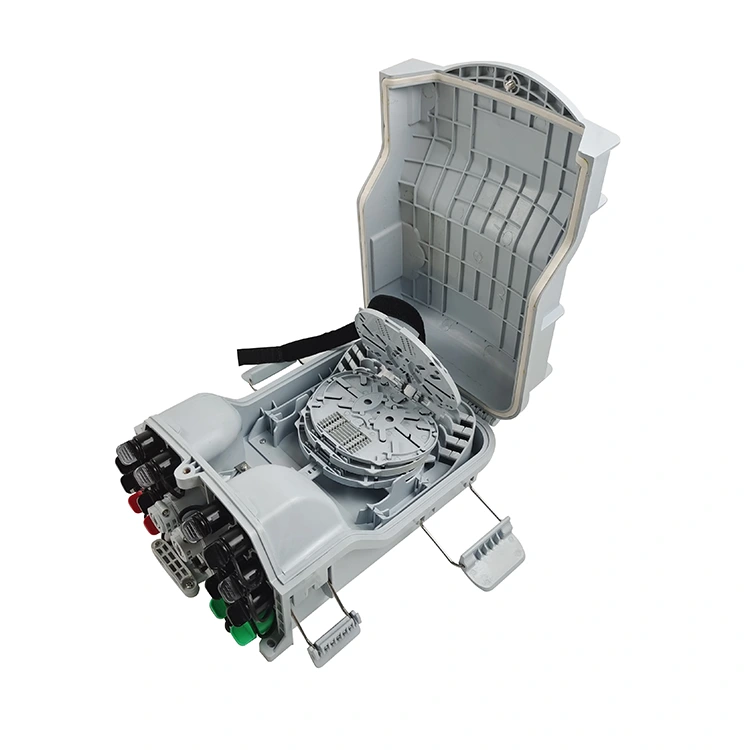

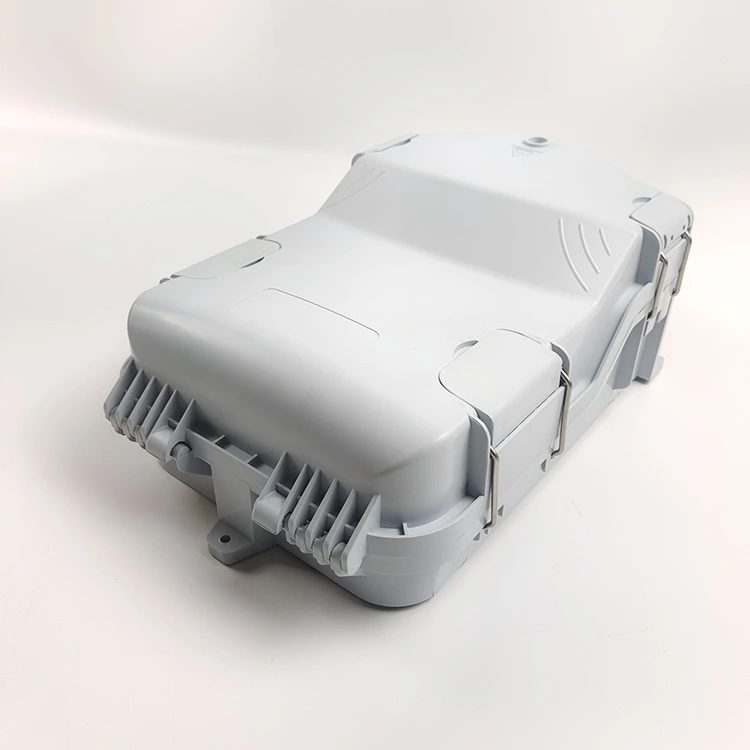

(1) The 16 Core Waterproof Fiber Optic Distribution Box features a fully enclosed design.
(2) Material: ABS, moisture-proof, waterproof, dustproof, and anti-aging, with protection rating IP68.

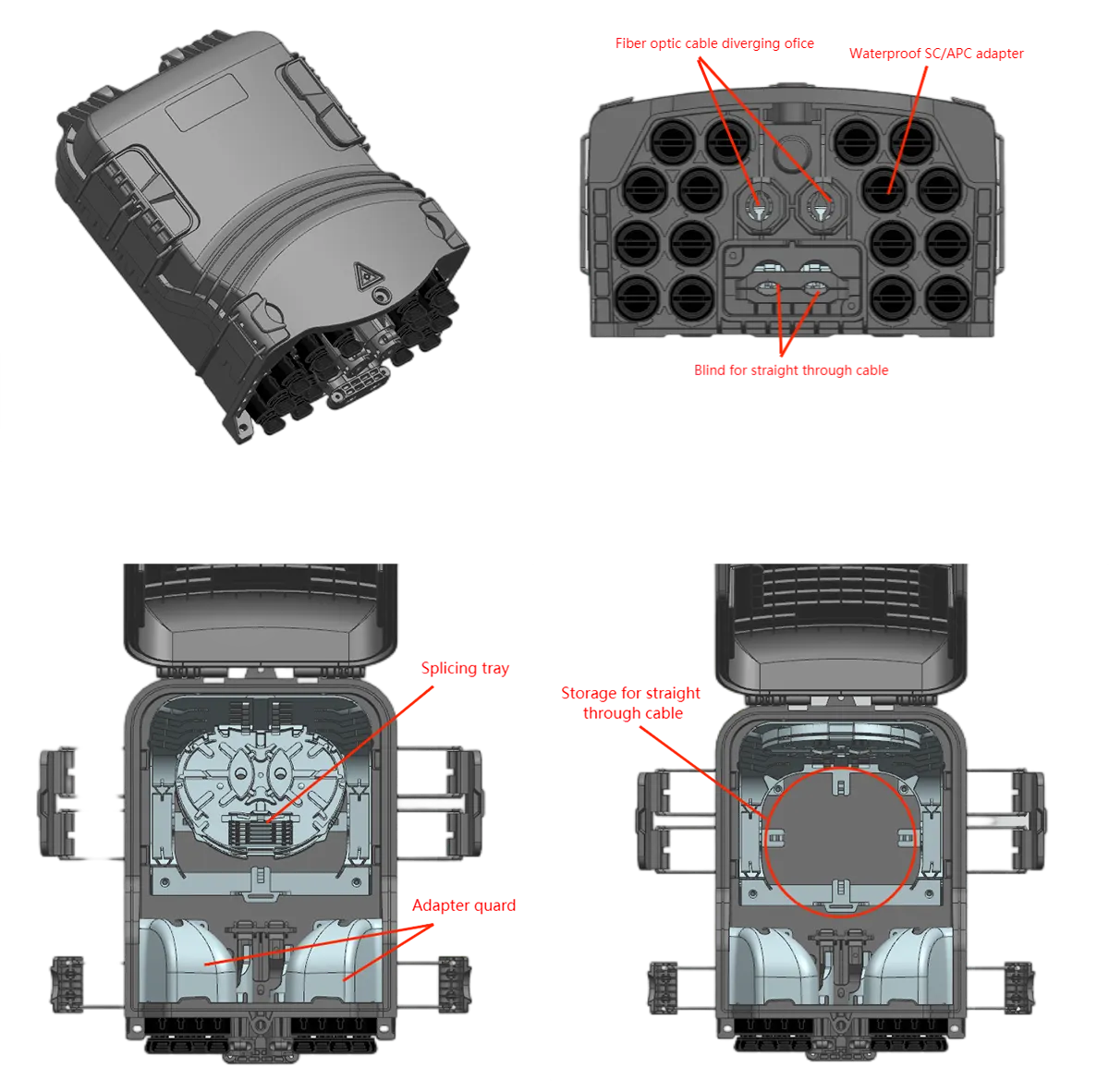

(3) The 16 FO Waterproof Fiber Optic Distribution Box integrates feeder and drop-in cable clamping, fiber optic splicing, fixing, storage, and wiring functions.
(4) Internally, optical cables, pigtails, and patch cords are routed independently, preventing interference; a miniature PLC splitter is used for installation, simplifying maintenance.

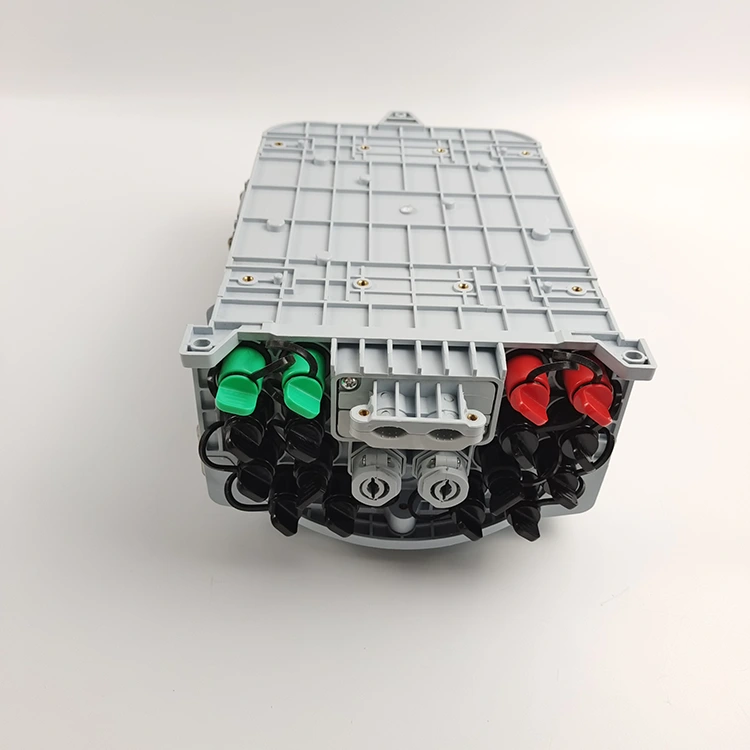

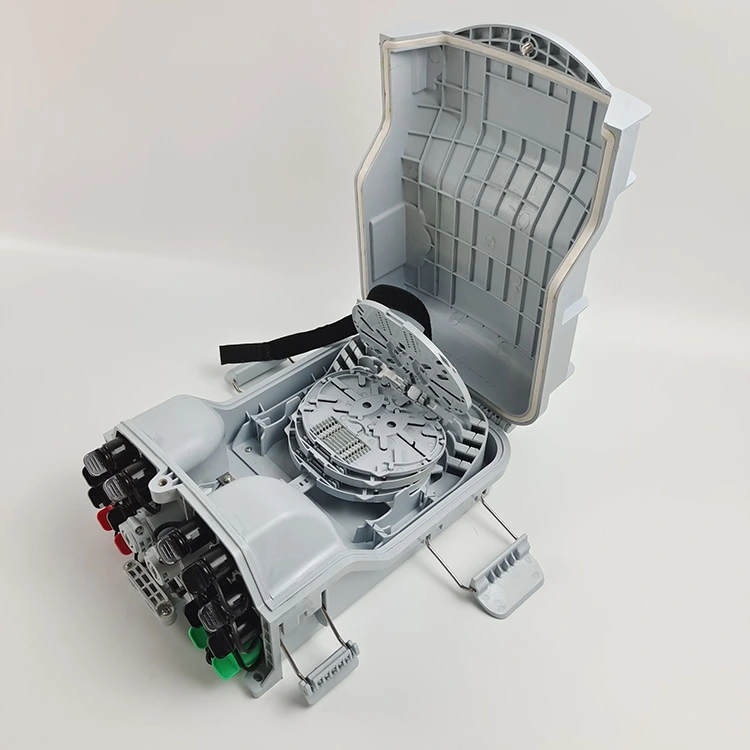

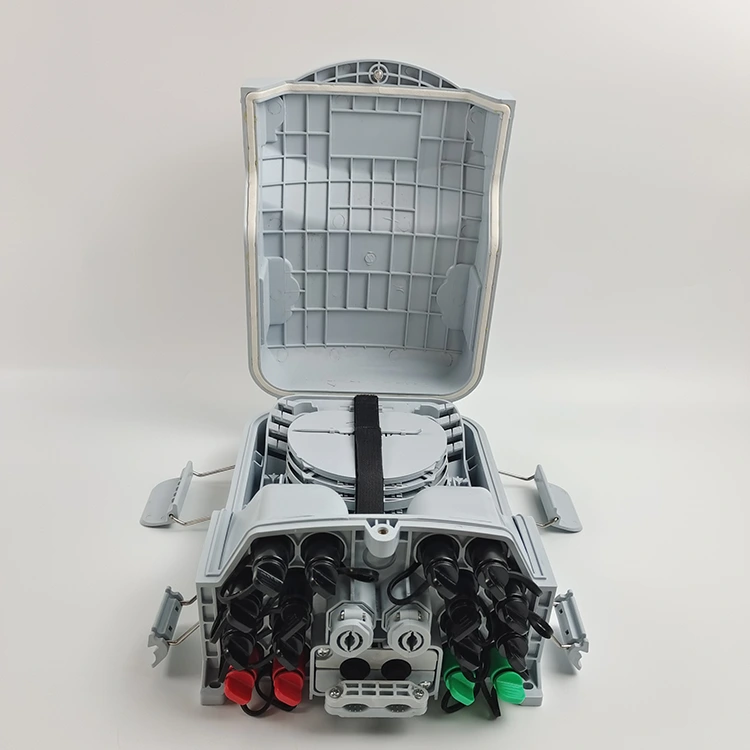

(5) The 16 Core Waterproof Fiber Optic Distribution Box splice tray can be flipped upwards, allowing feeders to be placed through the interface for easy maintenance and installation.
(6) The box can be wall-mounted or pole-mounted, suitable for both indoor and outdoor environments.
|
Items |
Specification |
|
Item No |
16 Core Waterproof Fiber Optic Distribution Box YY-H002 |
|
Exportation |
16C |
|
Size |
320*214*133mm |
|
Material |
ABS |
|
Waterproof |
IP68 |
|
Port Configuration 1 |
Support 12 Pcs FastConnect Connectors(can upgrade to 16 Pcs) |
|
Min.2 legacy ports for traditional drop cables |
|
|
Connector Detail |
4 x Pre-terminated Duplex LC/APC Connector |
|
8 x Pre-terminated Simplex SC/APC Connector |
|
|
PLC Splitter |
4 mini Steel Type PLC Splitters |
|
Environmental requirement |
|
|
Working temperature |
-40℃～+85℃ |
|
Relative humidity |
≤85% (+30℃) |
|
Atmospheric pressure |
70KPa~106Kpa |
|
Main technical data sheet |
|
|
Insertion loss |
≤0.15dB |
|
UPC return loss |
≥50dB |
|
APC return loss |
≥60dB |
|
Thunder-proof technical data sheet |
|
|
The insulation resistance between the grounding device and the metal parts of the box is no less than 2M Ω/500V (DC); IR≥ 2M Ω/500V |
|
|
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flash over; U≥3000V |
|
|
Model |

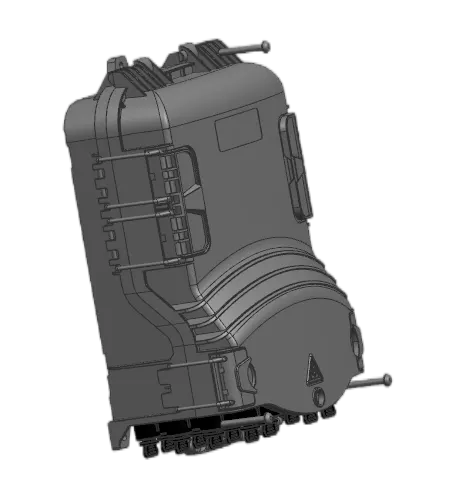

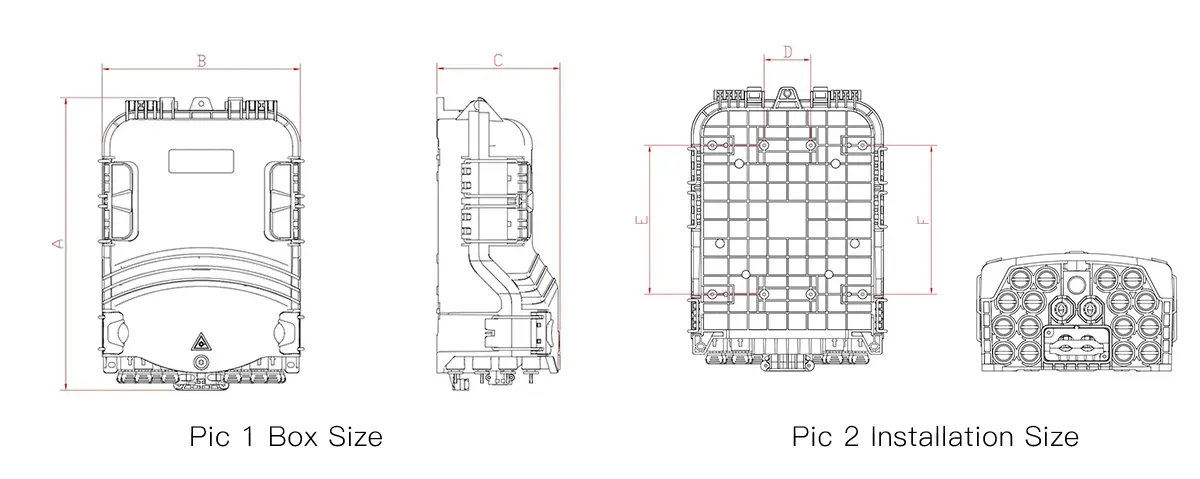

Size (Pic 1) A*B*C (mm) |
Max Capacity |
Installation Size (Pic 2) D*E*F(mm) |
Into the largest cable diameter (mm) |
Maximum size of branch hole (mm) |
Waterproof SC/APC adaptr |
|
16 Core Waterproof Fiber Optic Distribution Box YY-H002 |
320*214*133 |
48 |
52*166*166 |
ᴓ8~14 |
ᴓ16 |
16 |

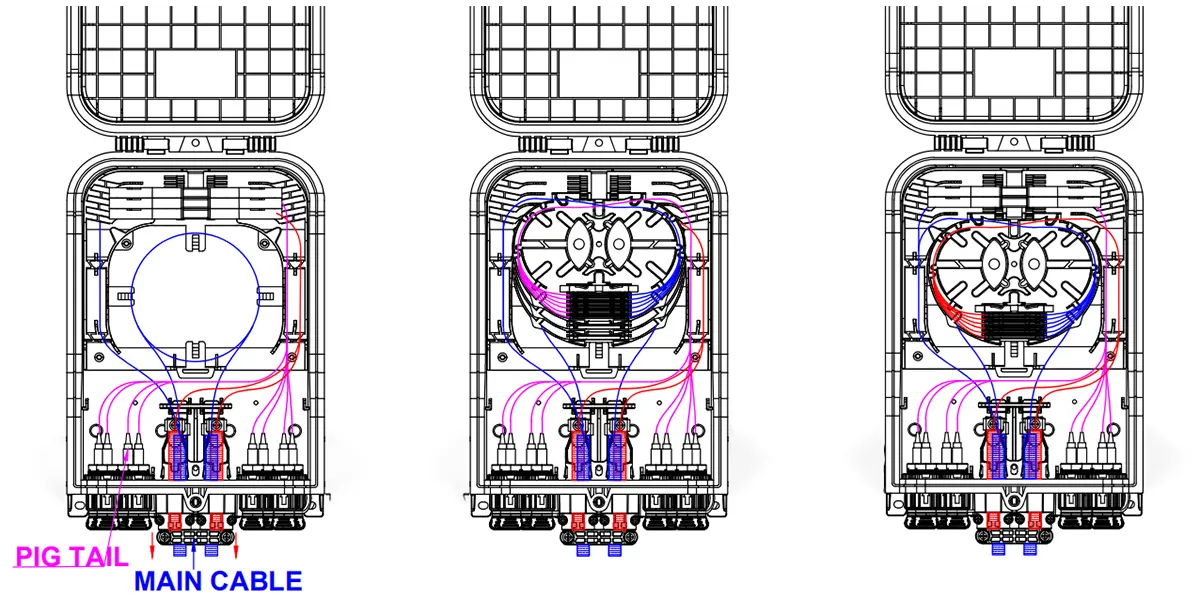

Product cable ways:

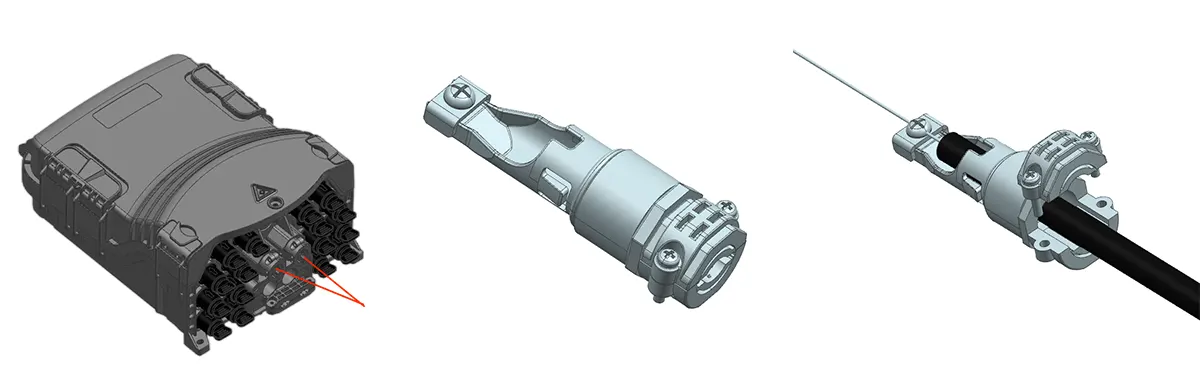

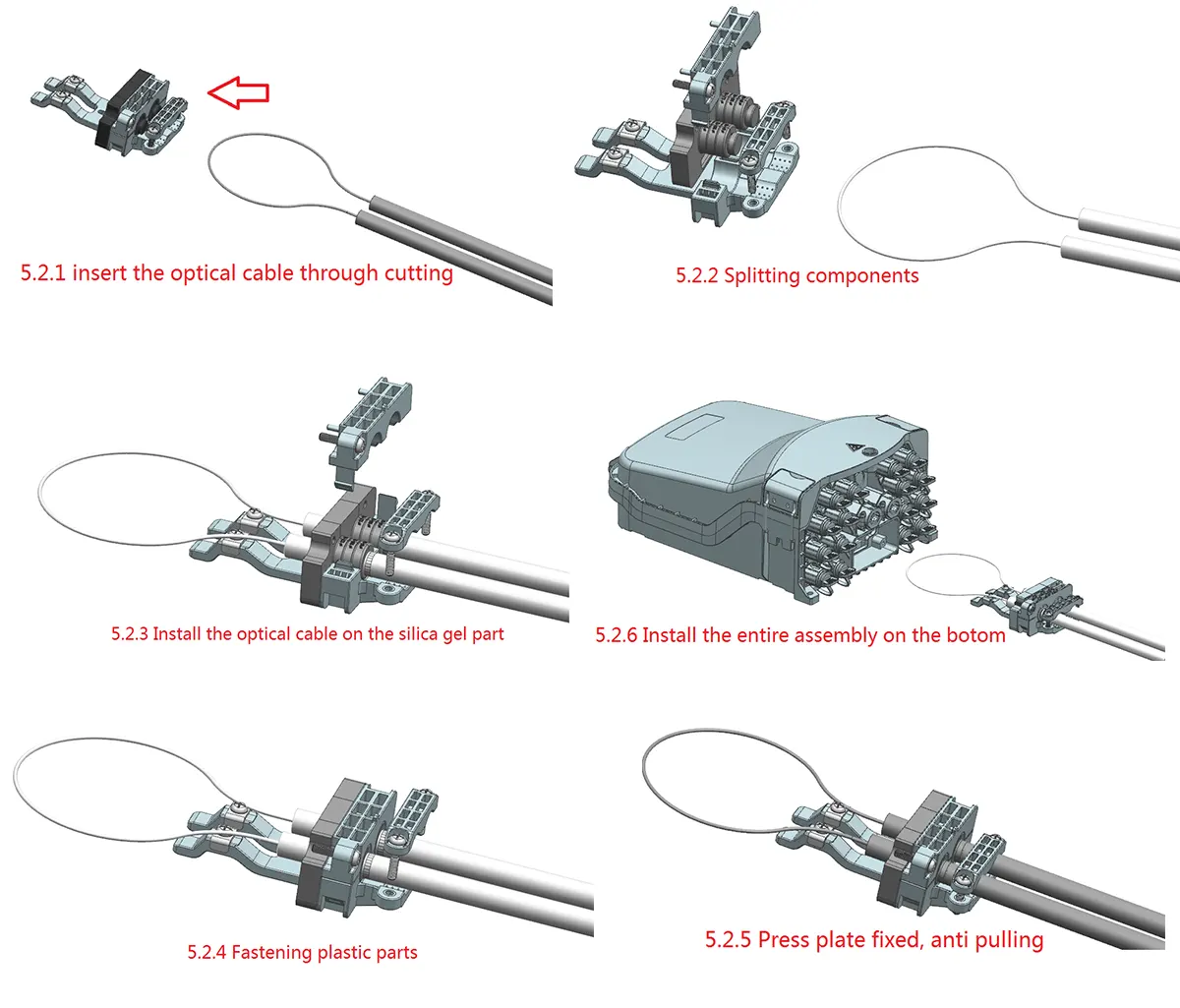

Fast Plug:
Fast installation, fastening, and sealing of straight-through optical cable with the Fast Plug.
Fiber optic cable bifurcation:
Product cable ways:
Splicing tray:
|
Item |
Splicing tray A |
Splicing tray B |
|
Dimensions(H x W x D; unit: mm) |
134*104*8 |
134*104*4 |
|
Net weight (unit: kg) |
0.021 |
0.015 |
|
Picture |
|
|
|
Color |
|
|
|
Material |
PC+ABS |
PC+ABS |
|
Splicing capacity of a tray(cores) |
12, 1 slot for 1/8 PLC |
8 |
Wall mount:
Drill 3 holes on the wall according to the size in Table 1, place expansion bolts Φ7.5*40, place boxes in alignment holes, and fasten with bolts (Figure 4).

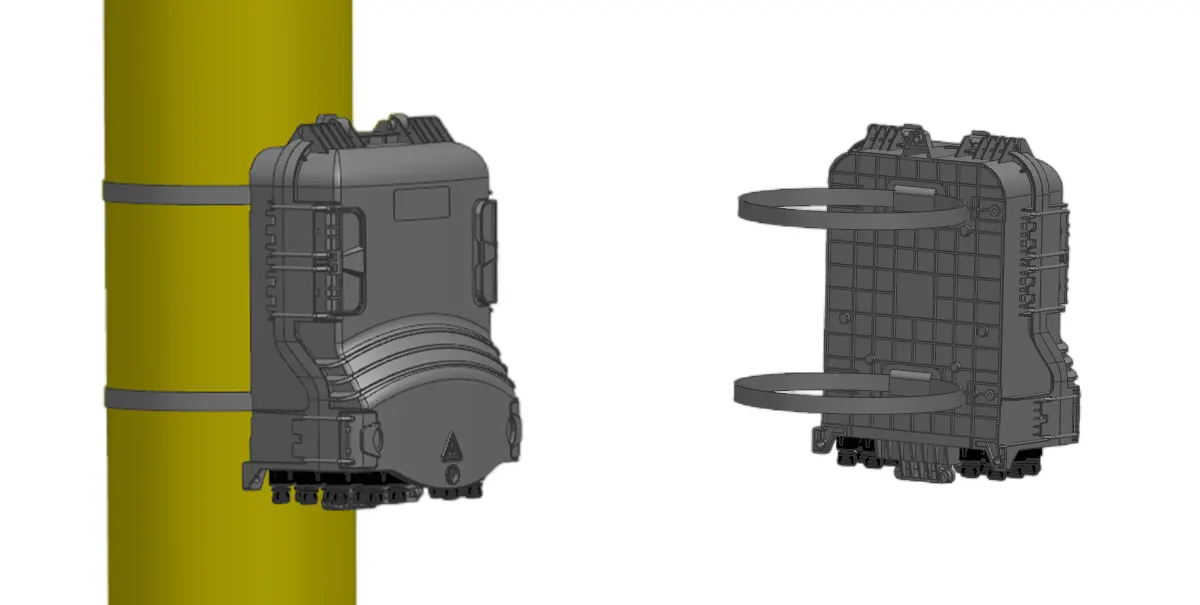

Pole mounting:
Fix 1 set of polar rings to the pole (Figure 5).

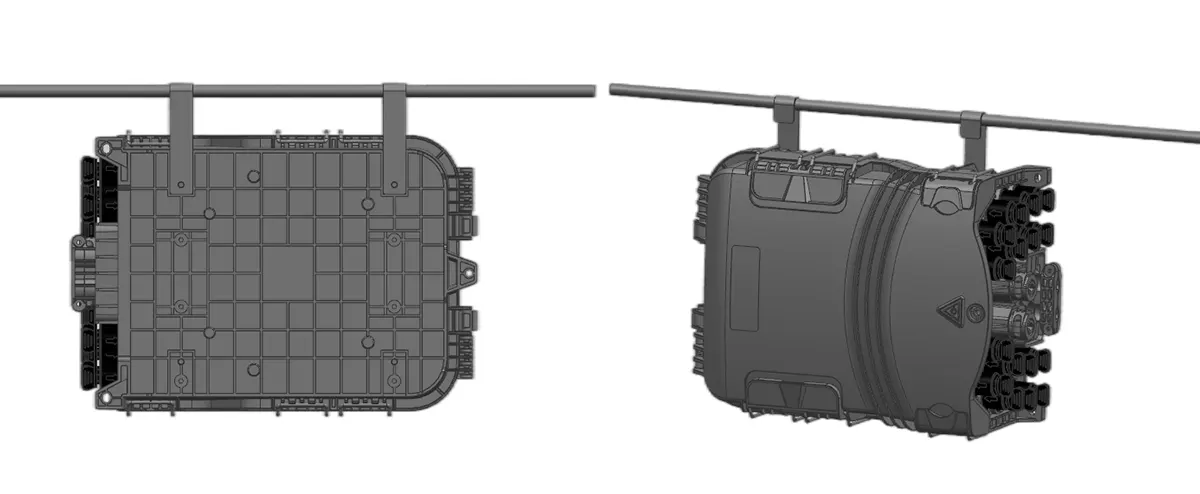

Overhead structure:
Hang the two tie rods installed on the chassis overhead on the iron wire, and then fix them with bolts to prevent the chassis from falling off (Pic(6).
Pic 4 Wall mounted installation
Pic 5 Pole mounted installation
Pic 6 The overhead structure
Pic 7 Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.
Pic 8 The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
