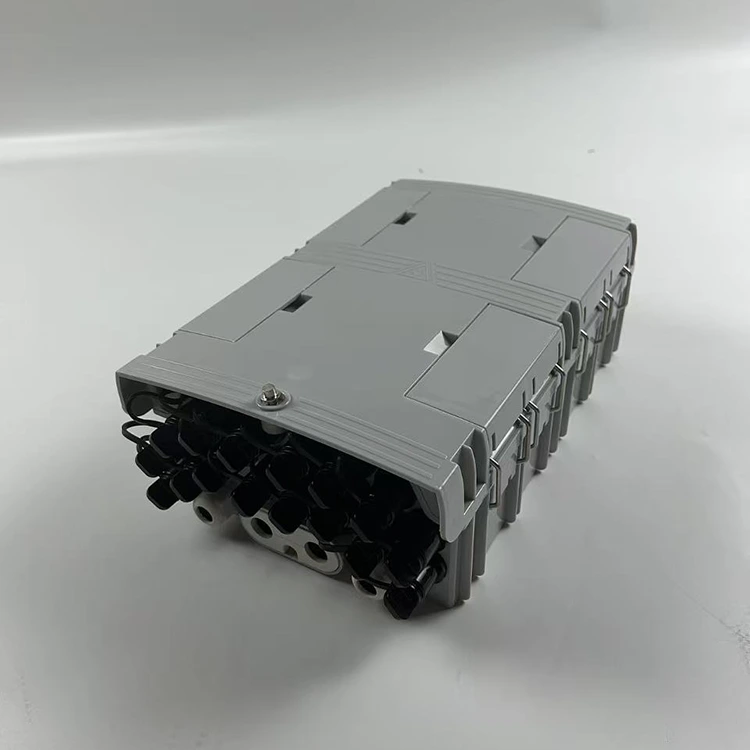

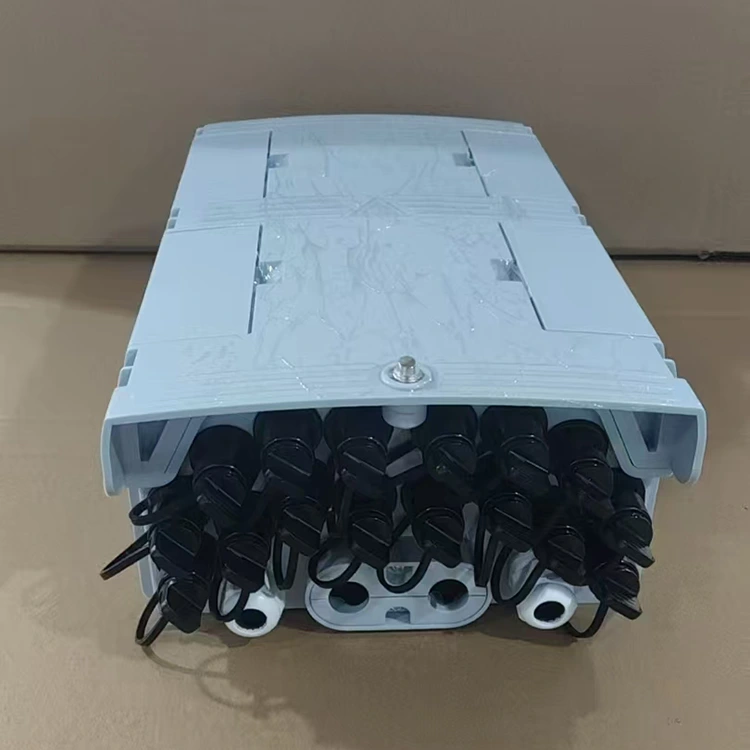

As a leading 16FO Waterproof Fiber Optic Distribution NAP Box manufacturer in China, Yuanyi integrates advanced protection with modular design, making it an ideal choice for FTTH/FTTX deployments that demand durability, flexibility, and ease of installation.
|
Feature |
Description |
|
Fully Sealed IP65 Enclosure |
ABS construction, waterproof, dust-proof, UV-resistant, suitable for harsh outdoor use. |
|
All-in-One Fiber Management |
Combines clamping, splicing (4×24-core trays), splitting, storage, and distribution in one compact unit. |
|
High-Density Capacity |
Supports 16 fibers (SC/APC or SC/UPC) with 2 inlet and 16 outlet ports. |
|
Organized Routing System |
Dedicated paths for feeder cable, drop cables, and pigtails to prevent tangling and ease maintenance. |
|

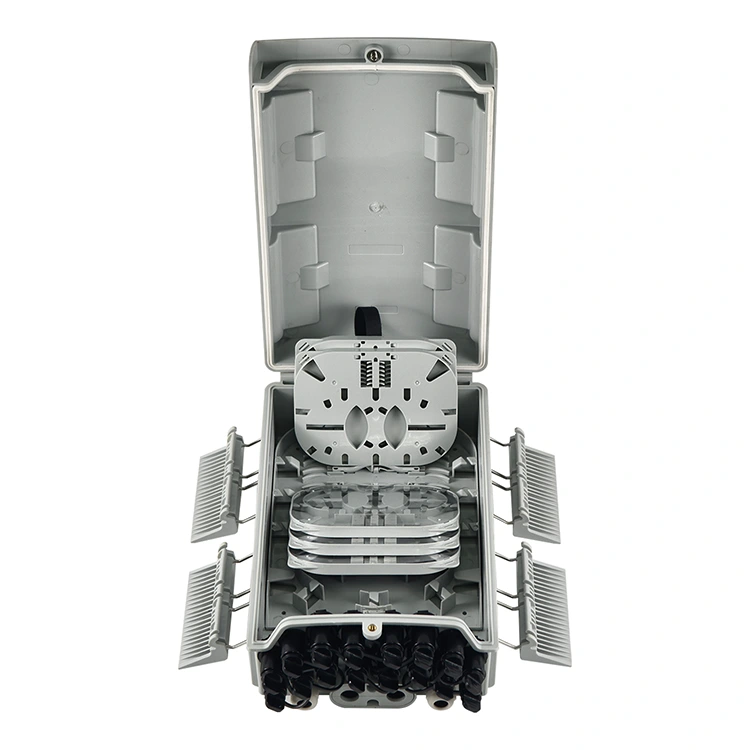

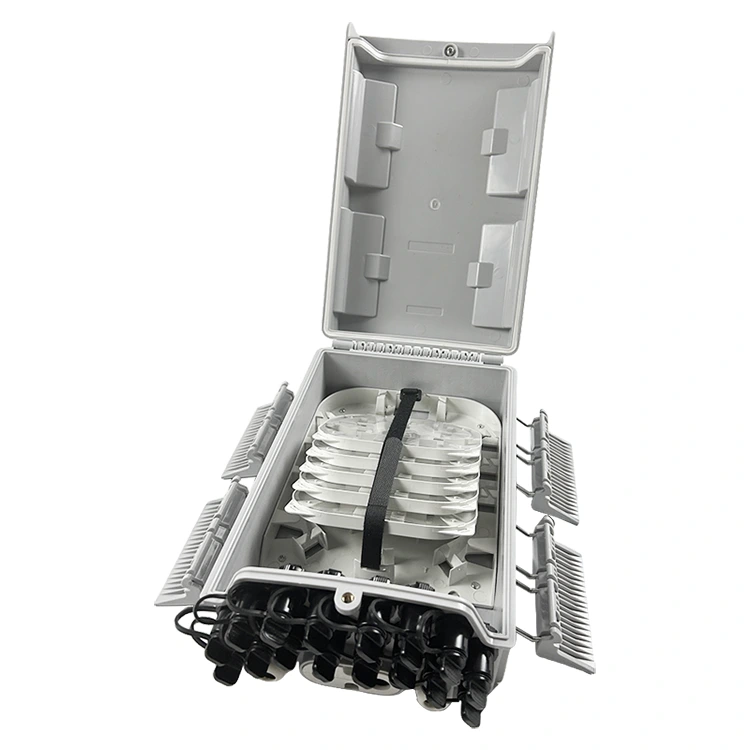

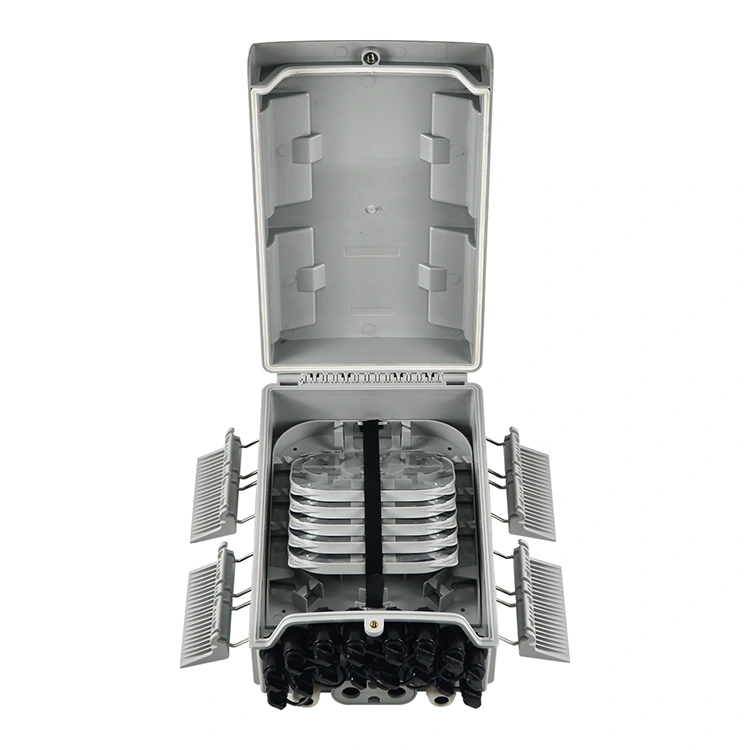

Flip-Up Distribution Panel |
Provides tool-less access to adapters and splitters for quick installation and servicing. |
|

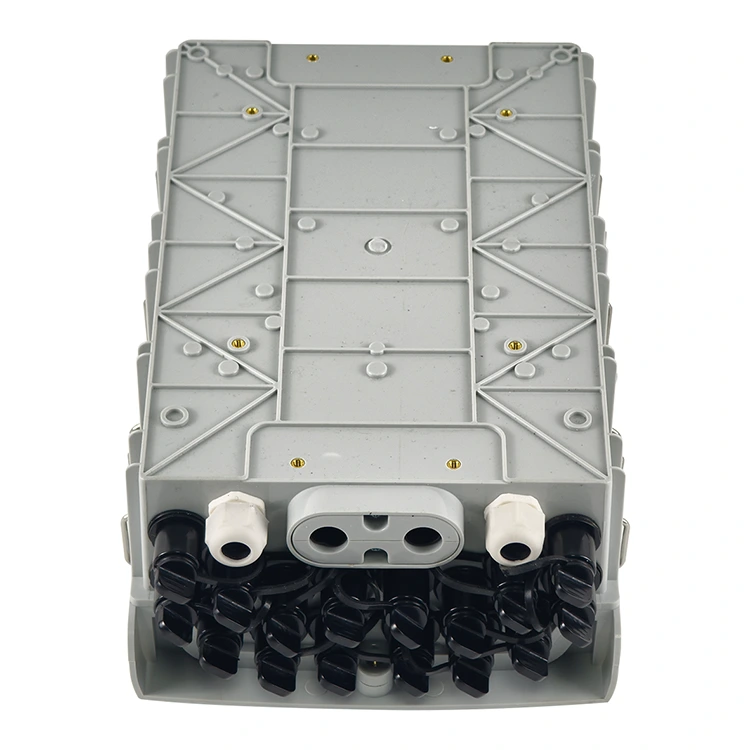

Versatile Mounting |
Wall-mounted or pole-mounted options for flexible deployment indoors and outdoors. |
|
Parameter |
Specification |
|
Model |
YY-H005 |
|
Product Name |
16FO Waterproof Fiber Optic Distribution NAP Box |
|
Fiber Capacity |
16 cores (SC/APC or SC/UPC) |
|
Port Configuration |
2 Inlets, 16 Outlets |
|
Splice Trays |
4 pcs (24 cores per tray) |
|
Adapters |
16 pcs waterproof adapters (SC/APC or SC/UPC) |
|
Material |
ABS (IP65 rated) |
|
Dimensions (L×W×H) |
345 × 220 × 120 mm |
|
Operating Temperature |
-25℃ to +45℃ |
|
Humidity |
≤ 85% at +30℃ |
|
Protection Level |
IP65 |
|
Return Loss |
UPC ≥ 50dB, APC ≥ 60dB |
|
Connector Durability |
≥ 1000 mating cycles |
|
Color Options |
Grey / White (custom colors available) |
|
Logo |
Customizable |
Yuanyi stands as a reliable 16FO Waterproof Fiber Optic Distribution NAP Box Supplier, offering a fancy 16FO Waterproof Fiber Optic Distribution NAP Box that combines aesthetic design with high quality. It is built to withstand demanding environmental conditions while simplifying on-site installation and future maintenance.
Key advantages include:
Pre-terminated ready – reduces field labor and deployment time

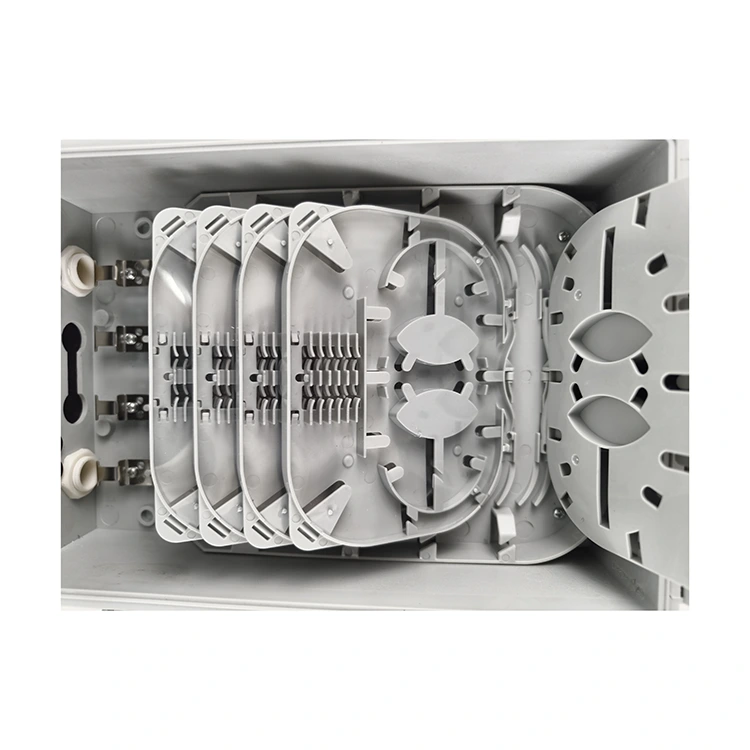

Modular splice tray design – supports scalable fiber management
Robust weatherproof housing – ensures long-term reliability in outdoor applications
User-friendly access – flip-up tray and clear routing for efficient operations
For projects seeking a balance of performance, durability, and value, Yuanyi is your trusted 16FO Waterproof Fiber Optic Distribution NAP Box Factory, delivering customized solutions with fast lead times and competitive pricing.
Product Name: 16FO Waterproof Fiber Optic Distribution NAP Box
Manufacturer: Yuanyi
Model: YY-H005
Packaging: Inner carton + outer carton
MOQ & Pricing: Contact for volume discounts and custom options
Delivery: Standard and expedited shipping available
