FTTH 2Core Fiber Optic Panel

As one of the professional FTTH 2Core Fiber Optic Panel manufacturers, we offer a product that supports 1–2 fiber cores and is injection-molded from PP or ABS material, ensuring durability, light weight, and cost efficiency. The panel plays an essential role in community cabling and is globally compatible with standard 86×86mm wall boxes. For projects requiring customized FTTH 2Core Fiber Optic Panel, we can accommodate specific color, logo, or adapter configurations.

Key Advantages

Multi-name, multi-use – Serves as 86 fox, fiber mini terminal box, fiber rosette, or fiber wall plate, adapting to different regional naming habits.

1–2 core capacity – Perfect for single-family homes, connecting indoor/outdoor drop cables.

Material options – Available in PP (economical) or ABS (higher impact resistance), both UL-rated. Our in-house FTTH 2Core Fiber Optic Panel Factory ensures strict quality control.

Universal fit – Standard 86×86×24mm size, fits global wall boxes (e.g., EU, US, Asia).

Multiple cable fixing – Supports outdoor cable, leather cable, adapter, and cold splice fixation. Tensile strength >50N, ensuring no fiber damage.

Low insertion loss ≤0.3dB (SC/LC/FC adapters compatible). The classy FTTH 2Core Fiber Optic Panel design combines aesthetics with functionality.

Wide temperature range –40℃ to +55℃, suitable for harsh environments. For those seeking a fancy FTTH 2Core Fiber Optic Panel appearance, our smooth white finish complements any interior.

Technical Specifications

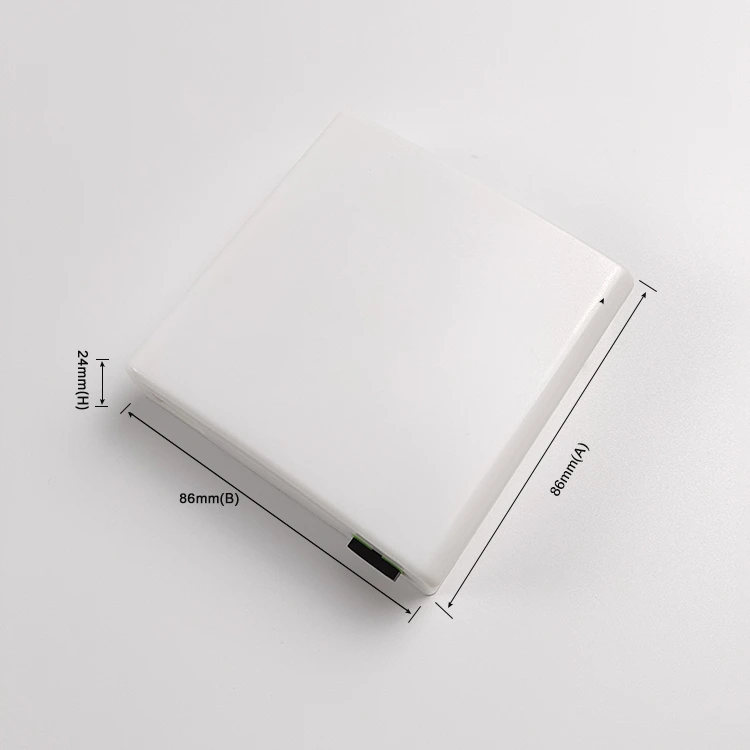

Overall Dimension

86 mm (W) × 86 mm (H) × 24 mm (D) – fits standard junction boxes worldwide.

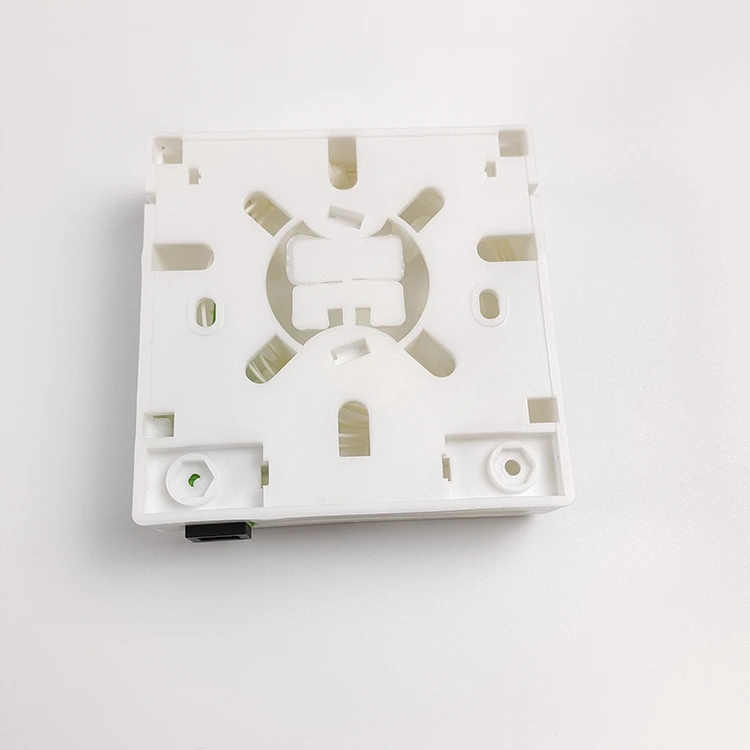

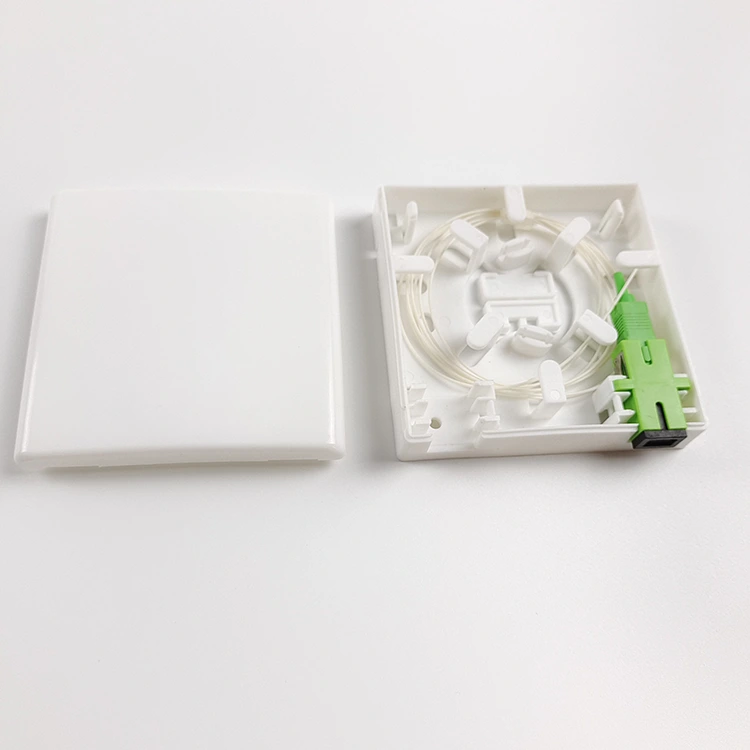

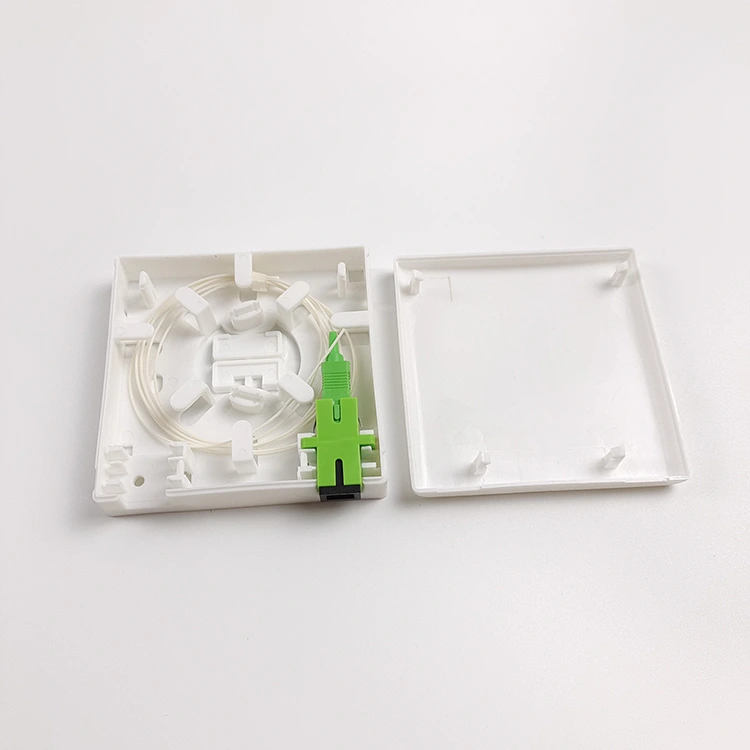

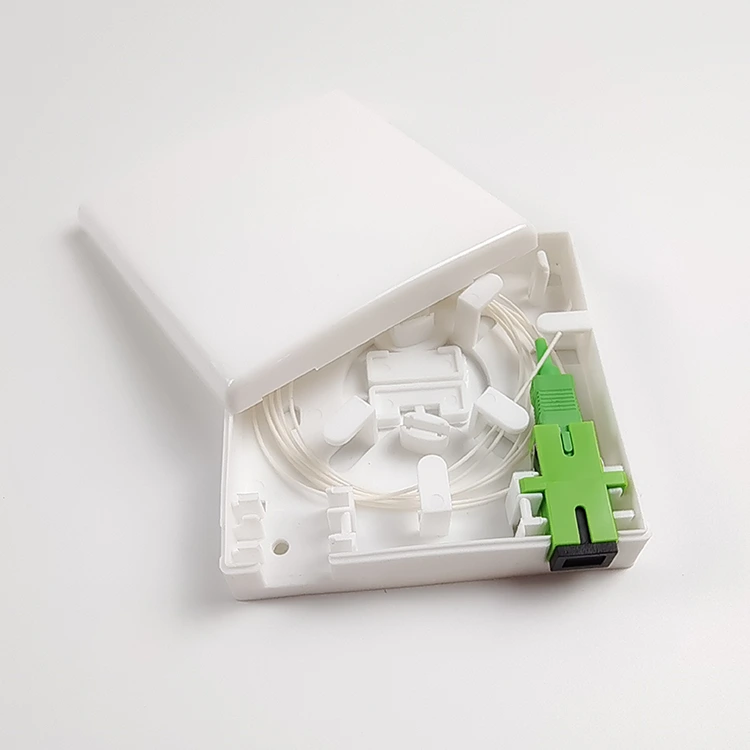

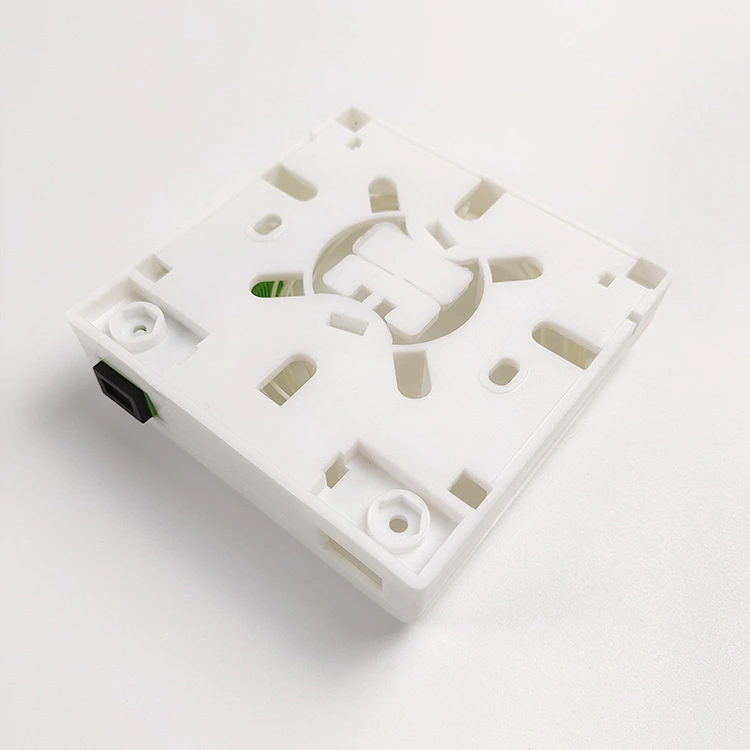

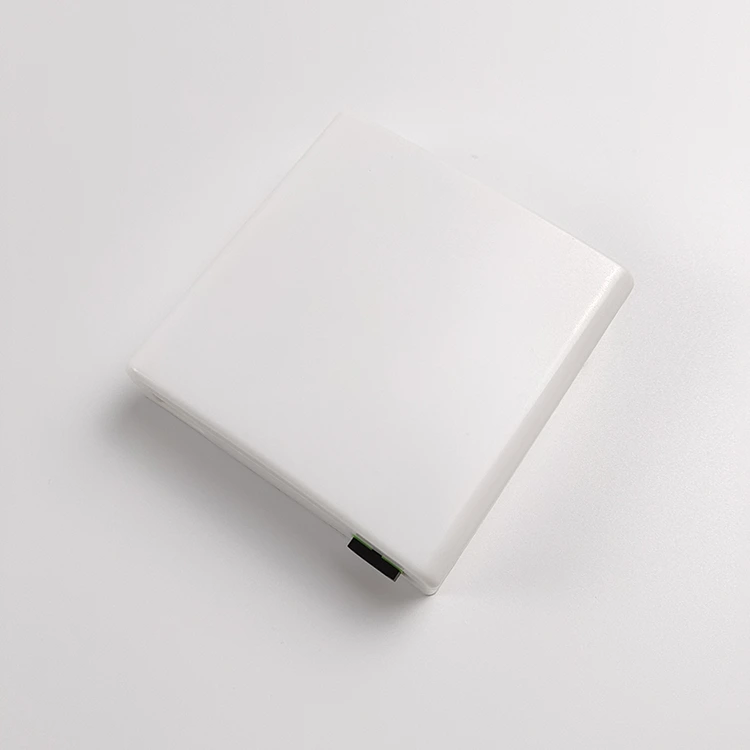

Product Display
