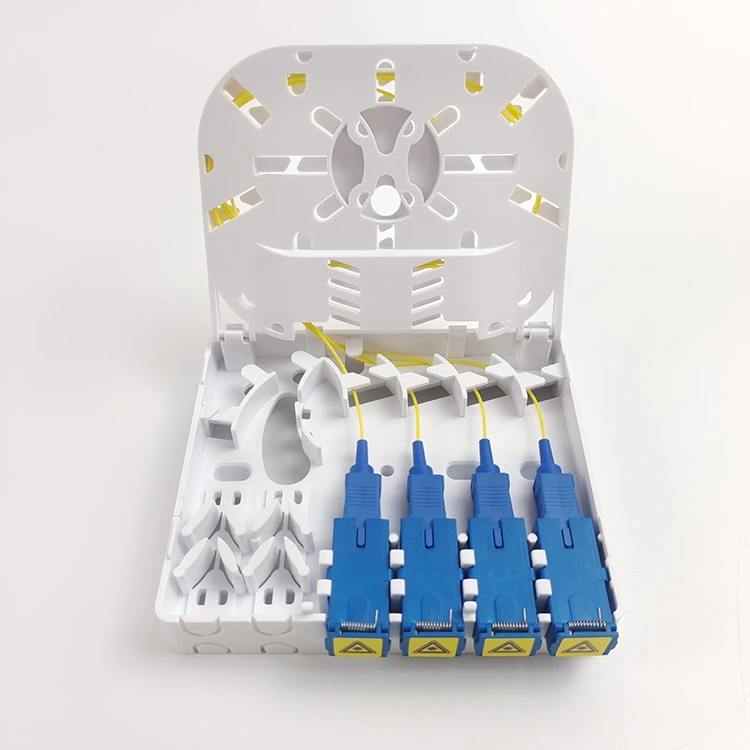

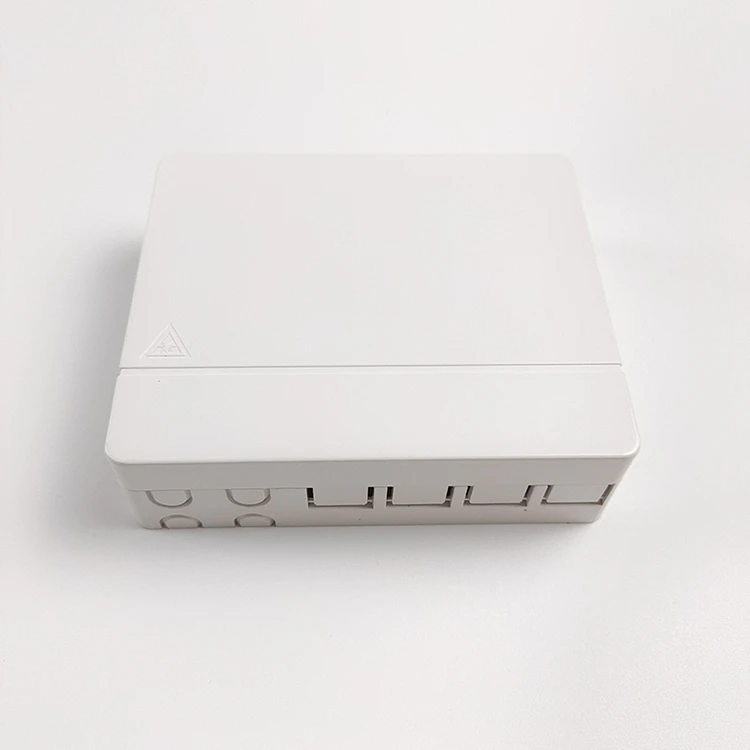

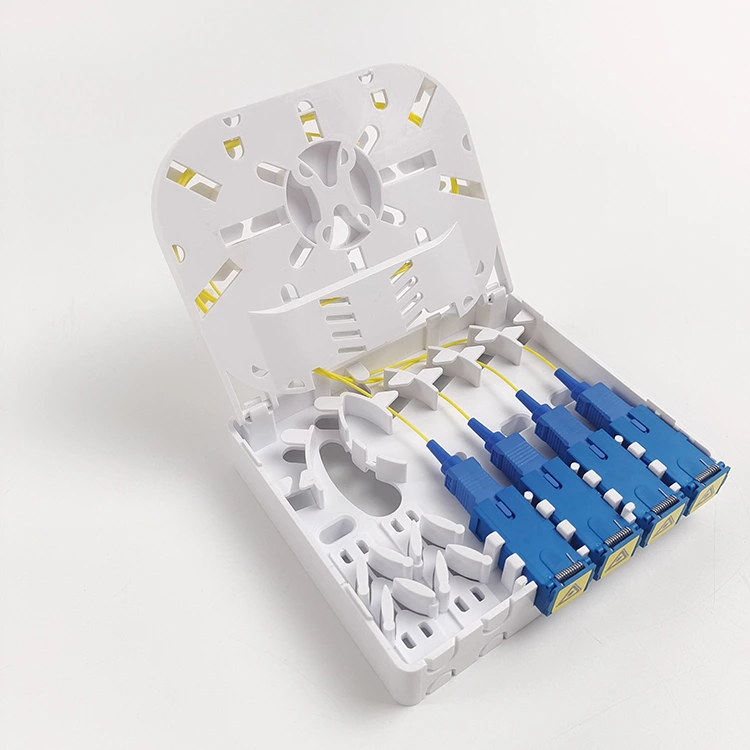

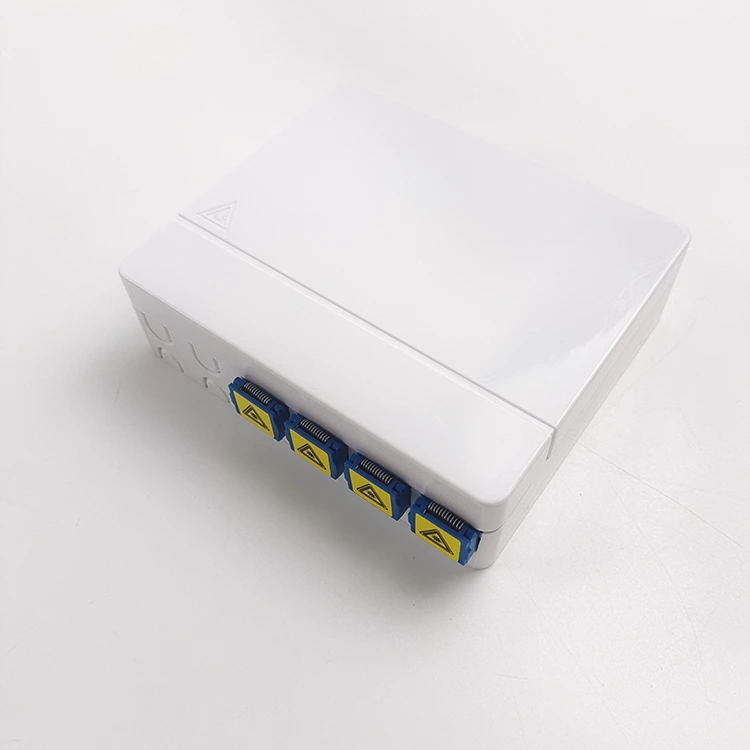

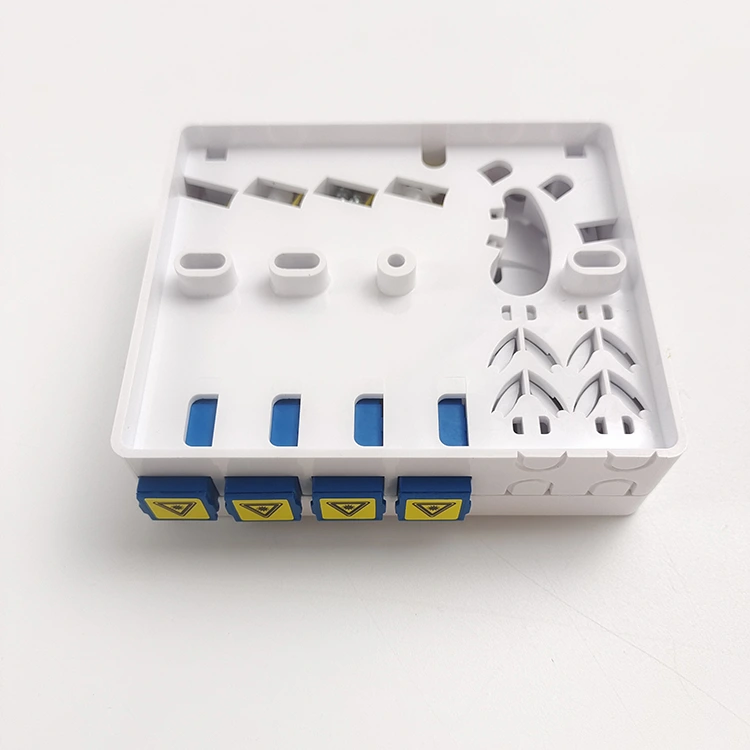

Supporting up to 4 fiber cores, the YY-Z11 is injection-molded from PP or ABS material (optional), offering excellent durability, light weight, and cost-effectiveness. As a trusted FTTH 4Core Fiber Optic Panel manufacturer, our factory ensures strict quality control. Whether you are searching for reliable FTTH 4Core Fiber Optic Panel suppliers, need wholesale FTTH 4Core Fiber Optic Panel, or require a customized Fiber Optic Panel (logo, color, or adapter type), the YY-Z11 is designed to meet global market demands. Its standard dimensions fit worldwide junction boxes, making it a truly global-compatible component for villa and residential cabling.
|
Parameter |
Details |
|
Item No. |
YY-Z11 |
|
Product Name |
FTTH 4Core Fiber Optic Panel |
|
Also Known As |
Fiber desktop box, fiber optic socket |
|
Manufacturer |
Ningbo Yuanyi Communication Technology Co., Ltd. |
|
Material |
PP or ABS (injection molded, optional) |
|
Dimensions |
86 × 86 × 24 mm (standard 86-box size) |
|
Fiber Capacity |
Up to 4 cores |
|
Applicable Fiber |
OD 0.9 / 2.0 / 3.0 mm pigtail |
|
Fiber Diameter |
125 µm (core) |
|
Cladding Diameter |
250 µm & 900 µm |
|
Adapter Type |
SC / LC / FC (customizable) |
|
Tensile Strength |
>50 N |
|
Insertion Loss |
≤0.3 dB |
|
Operating Temperature |
-40℃ ~ +55℃ |
|
Application Mode |
SM (single-mode) |
|
Standard Configuration |

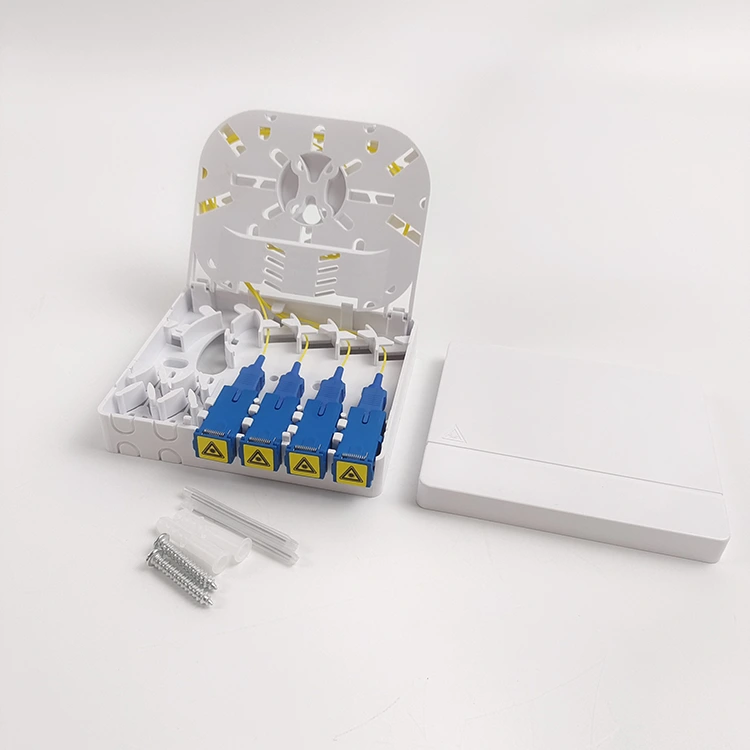

1×SC/APC flange (4-core version available on request), 1×SC/APC pigtail, 2×heat shrink tubes |
|

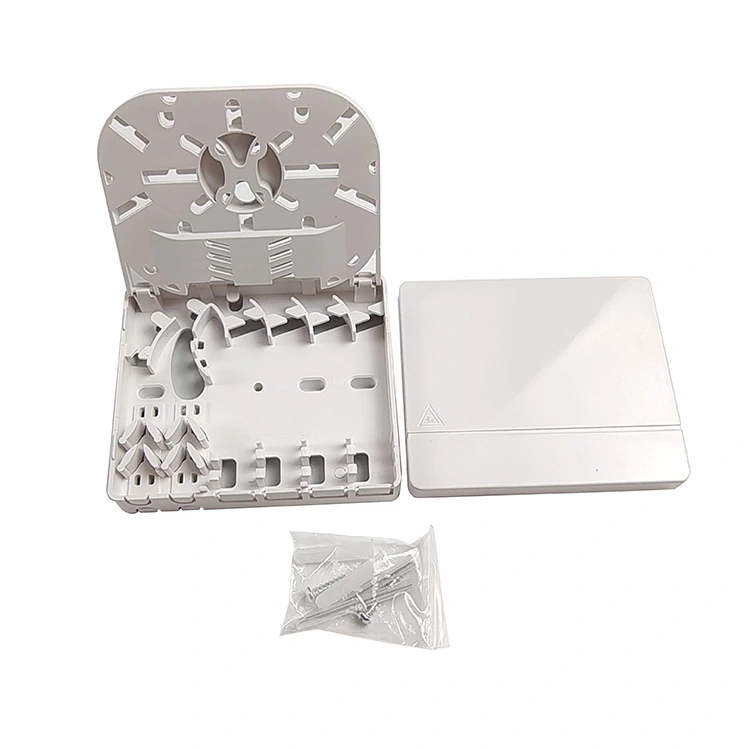

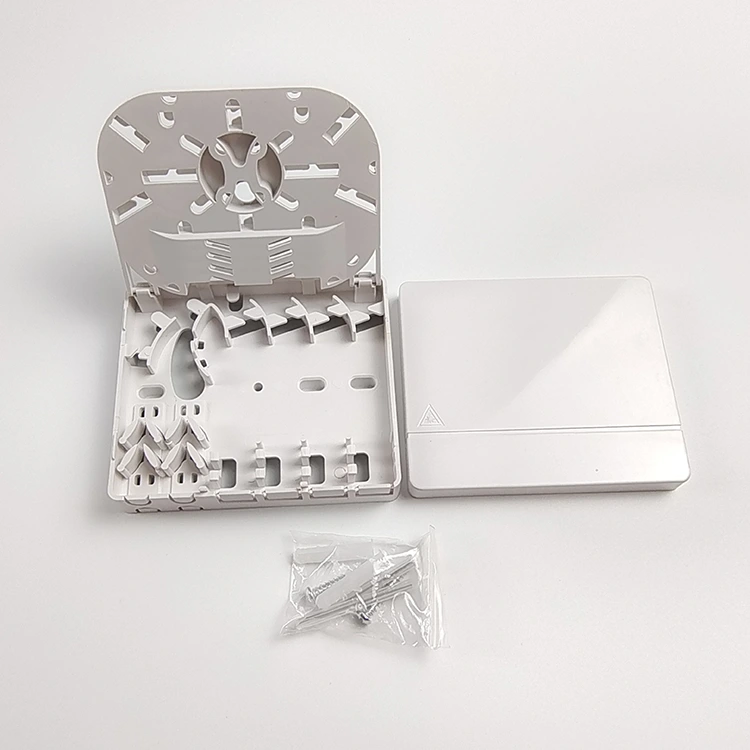

Accessories Included |
2 wall-mount screws, 2 plastic expansion screws |
● 4-core capacity – Ideal for villa fiber distribution, small business FTTH, or future-proof home networks.
● Versatile installation – Whether used as a fiber desktop box placed near a TV or computer, or mounted flush to the wall as a fiber optic socket, the YY-Z11 adapts to any scenario.
● Material flexibility – Choose economical PP or impact-resistant ABS; both UL-rated.
● Universal fit – Standard 100*85*3mm mounting pattern (similar to electrical outlets), compatible with EU, US, and Asian back boxes.
● Multiple cable fixing – Supports outdoor cable, leather cable, adapter fixation, and cold splicing. Tensile strength >50N, no fiber damage.
● Low insertion loss ≤0.3dB (supports SC/LC/FC adapters). The Classy FTTH 4Core Fiber Optic Panel design features a smooth, scratch-resistant surface that blends with modern interiors.
● Wide temperature range –40℃ to +55℃, suitable for harsh outdoor-to-indoor transitions.
● Easy installation – No special tools required; pre-molded cable guides and strain relief clips.
● For villa cabling – 4-core support allows separate lines for internet, IPTV, voice, and future expansion.
● Global search ready – The YY-Z11 is optimized for keywords naturally throughout this document, including FTTH 4Core Fiber Optic Panel factory (our own integrated production) and customized FTTH 4Core Fiber Optic Panel (logo, adapter, cable length). Whether you are a distributor searching for wholesale FTTH 4Core Fiber Optic Panel or an installer looking for a reliable solution, the YY-Z11 delivers.

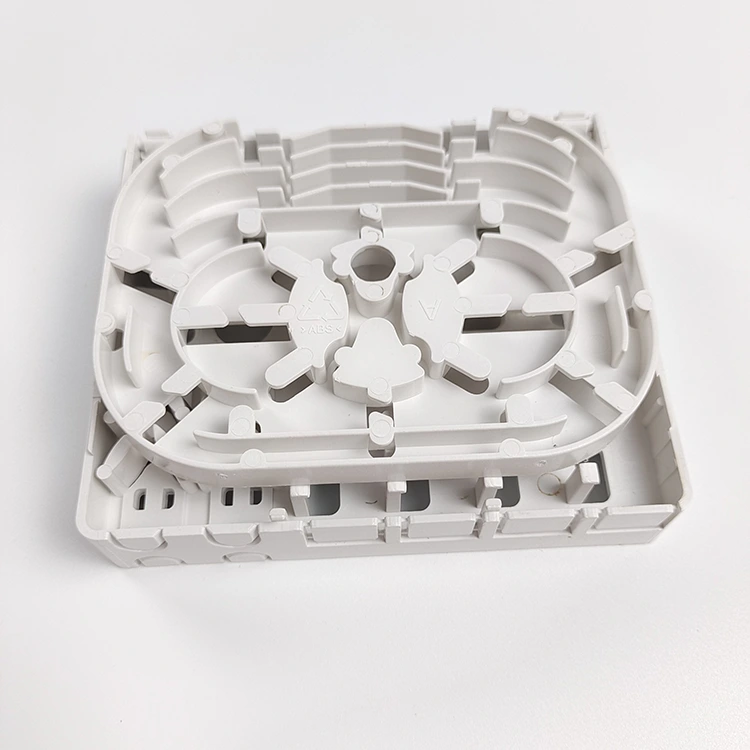

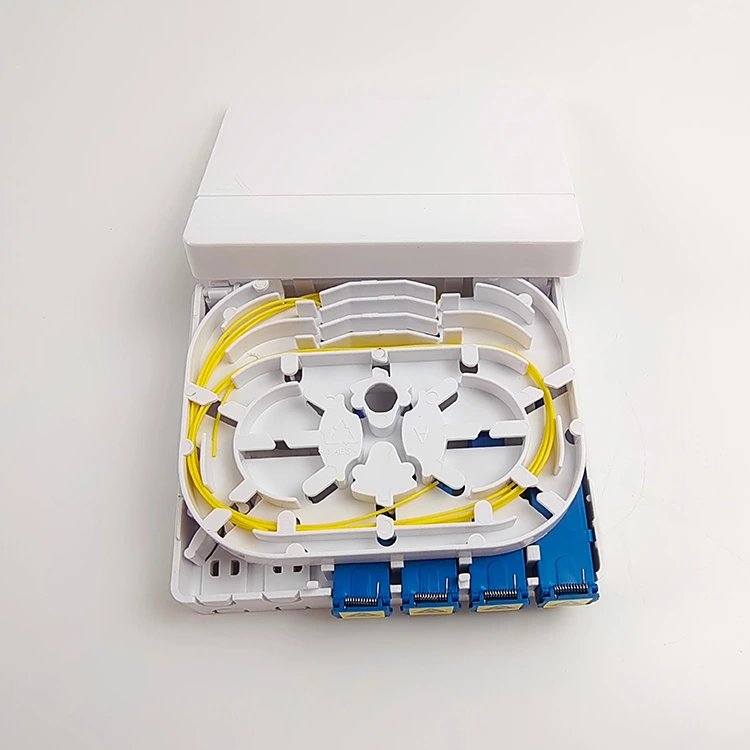

● No design duplication – Unique internal cable routing with separate channels for each of the 4 cores, plus an integrated cold-splice holder and strain-relief clamp – less than 50% similarity to generic fiber panels.
● Proven reliability – Tensile strength >50N and insertion loss ≤0.3dB ensure long-term performance in last-mile networks.
